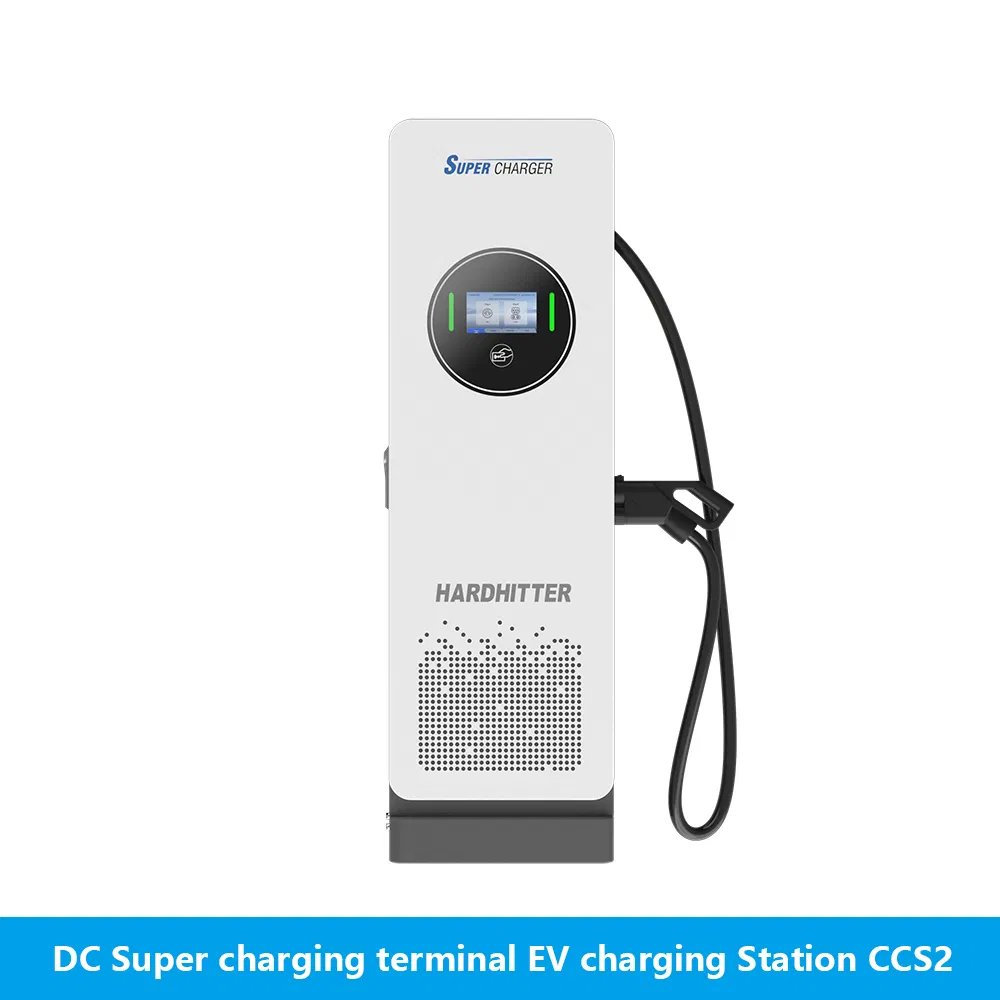

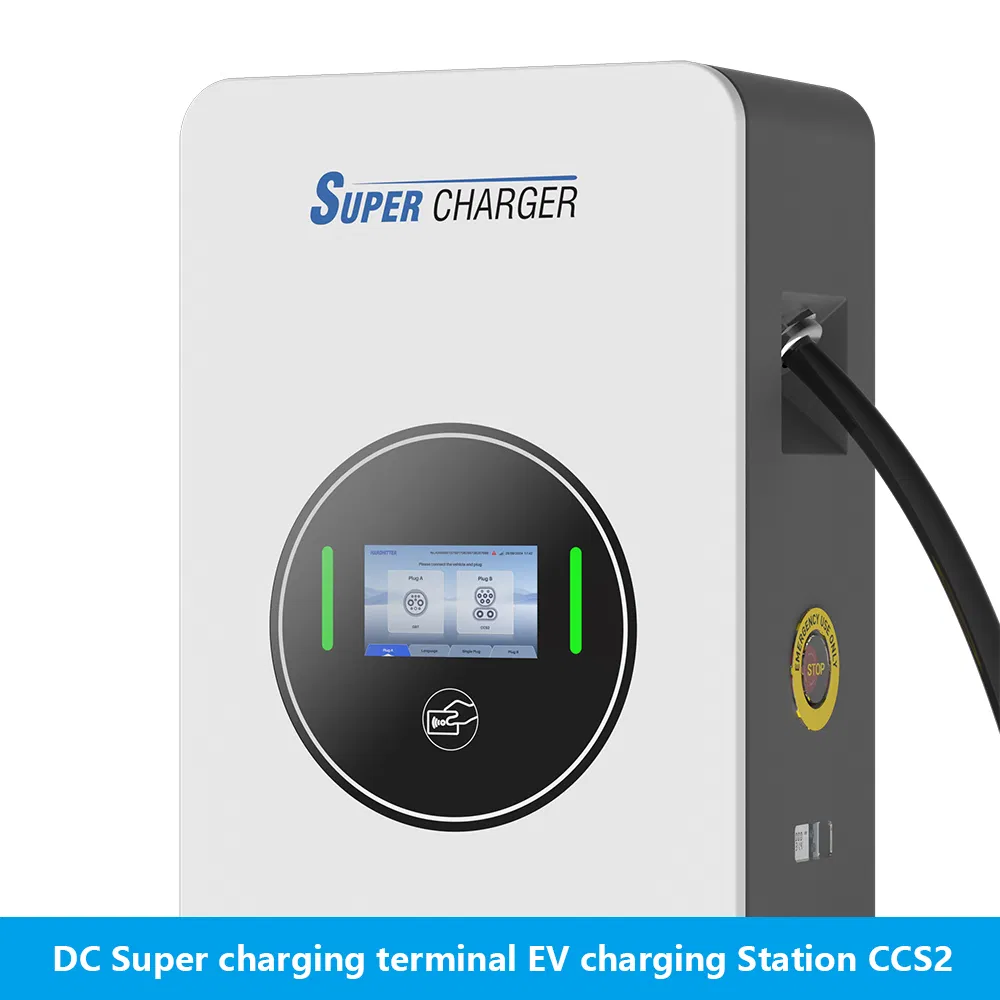

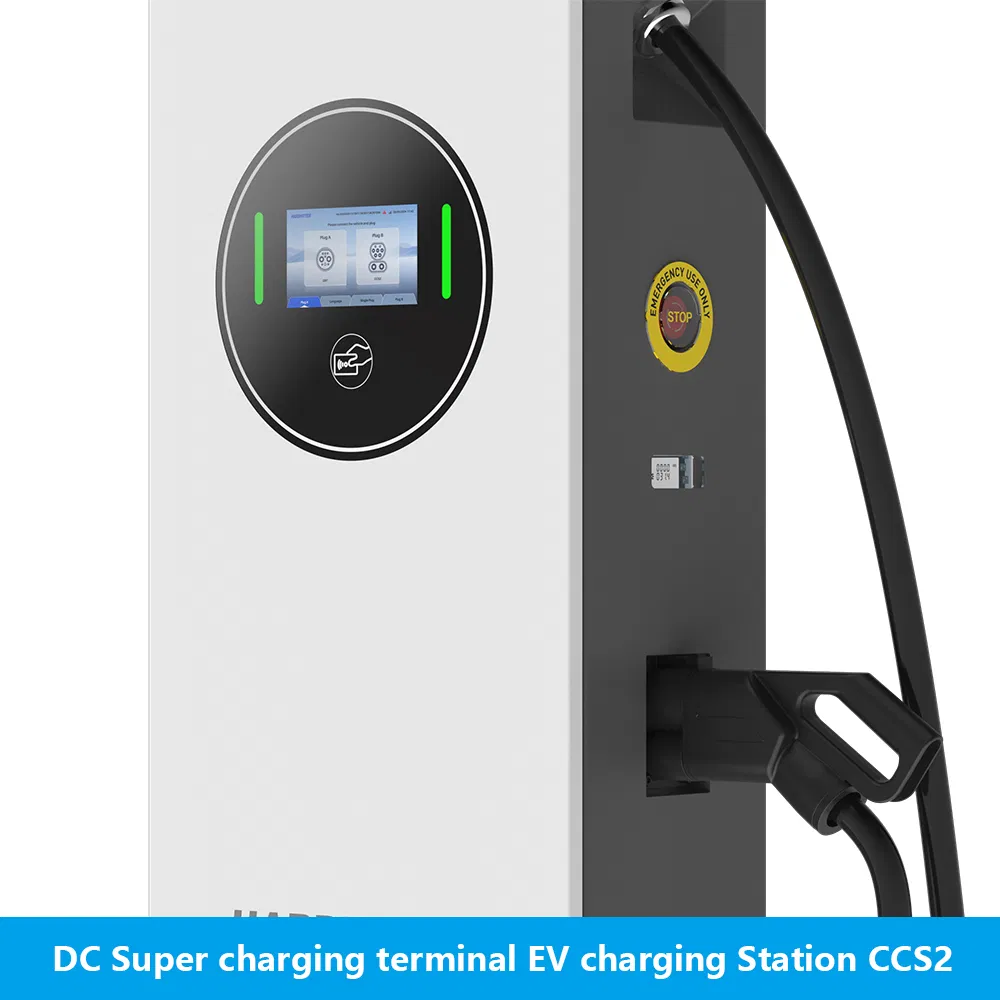

CCS2-Compliant DC Super Charging Terminal Integrated Into Intelligent Power Scheduling System
CCS2-Compliant DC Super Charging Terminal Integrated Into Intelligent Power Scheduling System
CCS2-Compliant DC Super Charging Terminal Integrated Into Intelligent Power Scheduling System
CCS2-Compliant DC Super Charging Terminal Integrated Into Intelligent Power Scheduling System
CCS2-Compliant DC Super Charging Terminal Integrated Into Intelligent Power Scheduling System
1 / 5
CCS2-Compliant DC Super Charging Terminal Integrated Into Intelligent Power Scheduling System
CCS2-Compliant DC Super Charging Terminal Integrated Into Intelligent Power Scheduling System
CCS2-Compliant DC Super Charging Terminal Integrated Into Intelligent Power Scheduling System
CCS2-Compliant DC Super Charging Terminal Integrated Into Intelligent Power Scheduling System
CCS2-Compliant DC Super Charging Terminal Integrated Into Intelligent Power Scheduling System

CCS2-Compliant DC Super Charging Terminal Integrated Into Intelligent Power Scheduling System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
HQC21-HMI-111-E
Location
Public Use
Installation
Floor Type
Charge Method
Quick Charge
Output Voltage
200~1000V
Protection Level
IP55
Weight
≈140kg
HS Code
8504409999

Technical Parameters

Output Voltage 200~1000V
Output Current 600A(GB/T), 500A(CCS2)
Charging Interface GB/T, CCS2
User Interface 7 Inch Touch Screen, LED
Start Mode Swipe Card, Scan Code, Plug and Charge, Platform Remote Start
Operating Temperature -40°C to +60°C
Altitude ≤2000m
Dimensions 500*350*1900mm (W*D*H)
Communication CAN

Product Highlights

High Power Delivery: Single gun rated current 600A, peak current 800A, maximum charging power up to 600kW.
Superior Protection: Separately designed electrical and heat dissipation systems with IP55 protection level.
Low Noise Operation: High-efficiency liquid cooling system reduces noise to less than 50dB under standard conditions.
Enhanced Safety: Intelligent temperature control algorithm monitors the charging gun and stops charging if abnormal heat is detected.
Universal Compatibility: Fully compatible with the entire series of charging cabinets and prefabricated compartments.
Refueling Speed Experience: Maximum output power of 600kW allows for over 300 kilometers of range after just 5 minutes of charging.

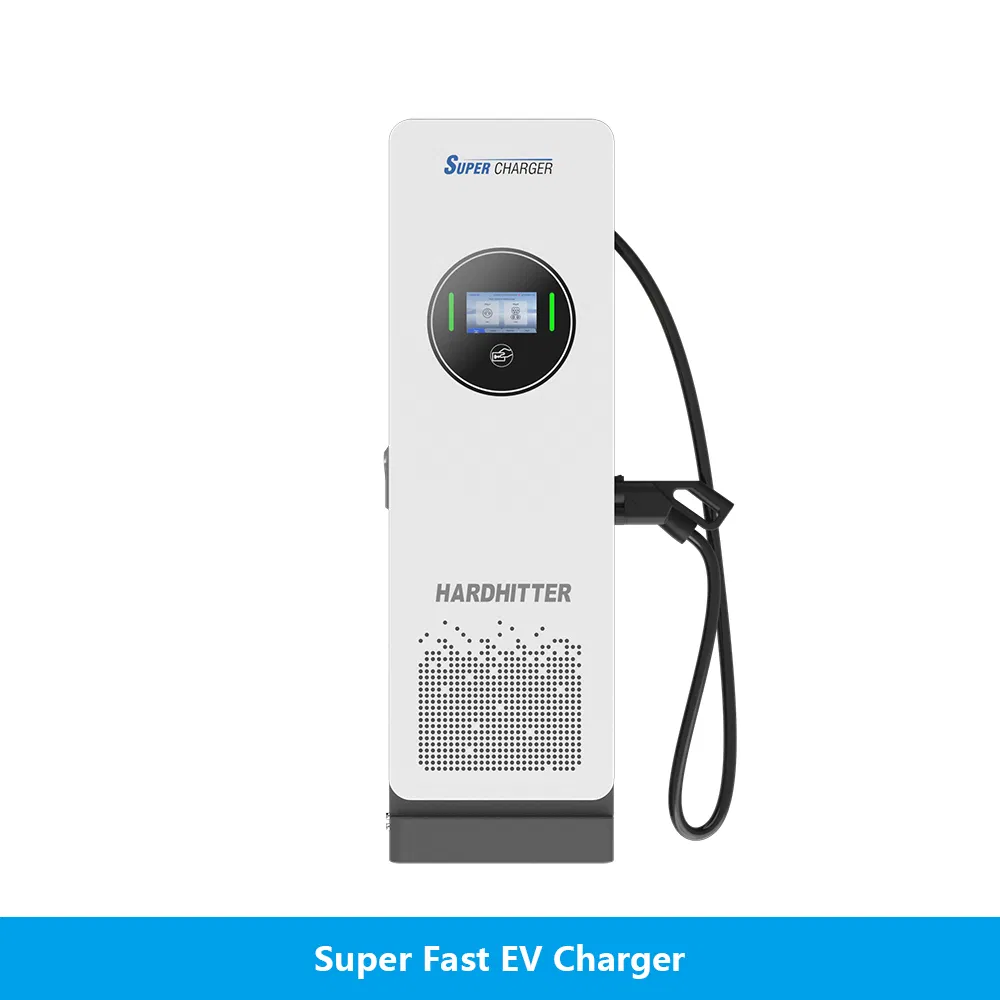

DC Super Charging Terminal 1

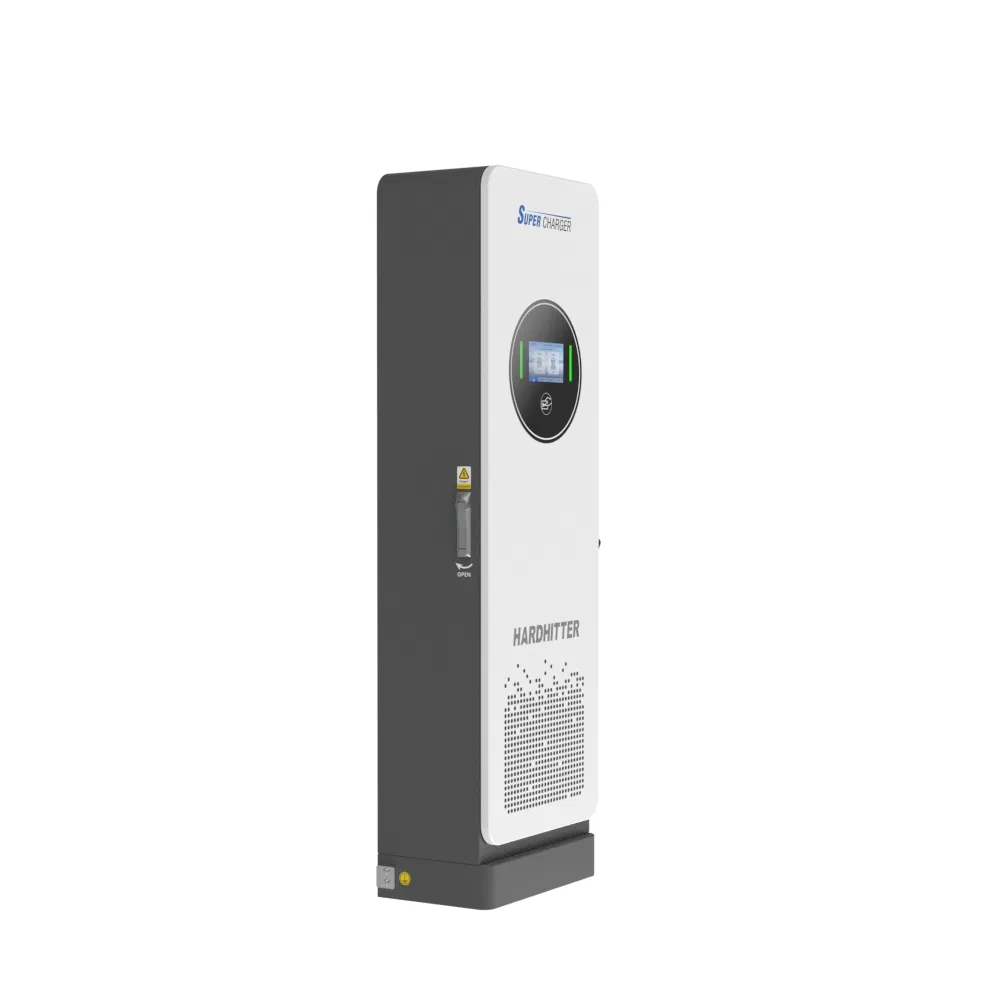

DC Super Charging Terminal 2

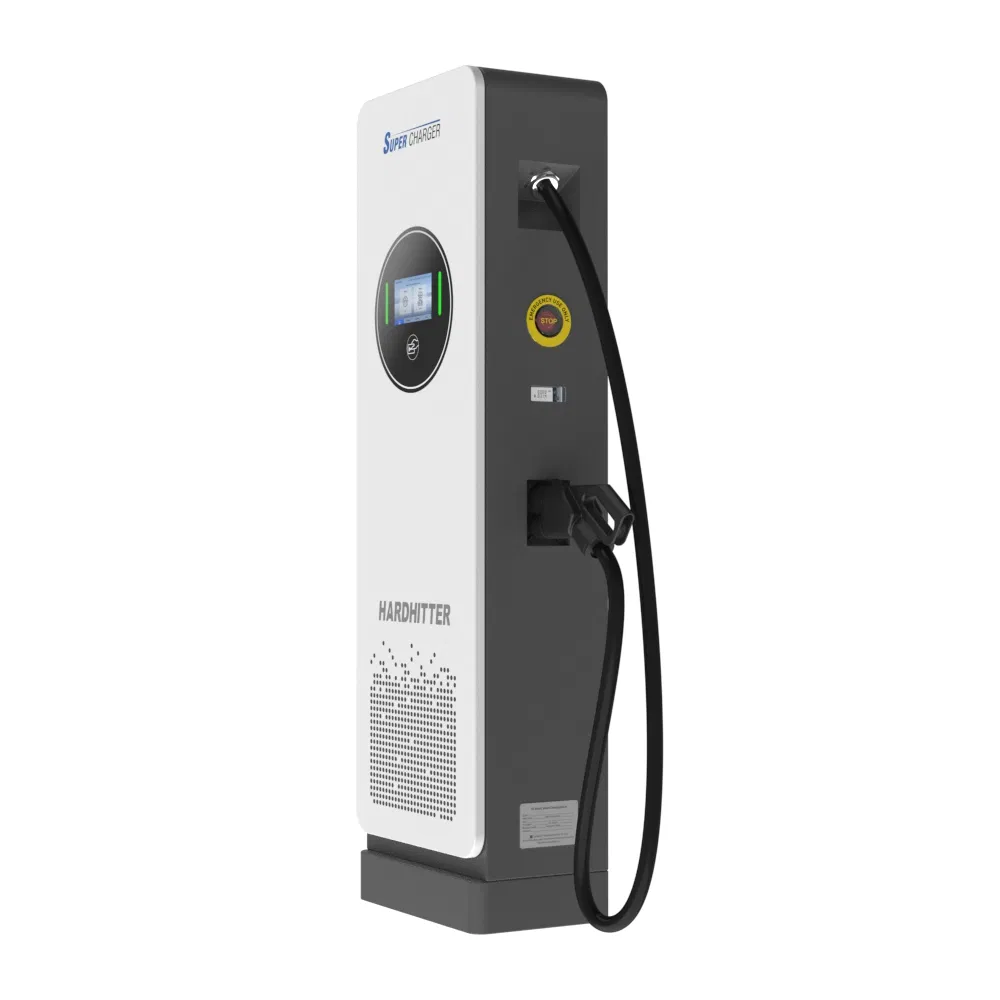

DC Super Charging Terminal 3

Industrial Application

Application Overview
Facility Layout
System Integration
Quality Standards

Common Questions

Q: What is the typical lead time for an order?
Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Are your EV charging products certified?
Yes, we maintain a strict quality control system. Our EV charging products are fully compliant with CE and TUV certifications.
Q: What is the standard warranty period?
The warranty for our products is 12 months upon the receipt of your shipment under normal operating circumstances.
Q: Do you offer customization for OEM/ODM projects?
Yes, we have been involved with OEM and ODM projects since 2012, providing professional customized services for our global clients.
Q: Will this charger work with all electric vehicles?
Our EV Chargers work with all standard Electric Vehicles. Note that Tesla vehicles require a J1772 to Tesla adapter to utilize these stations.
Q: Does the charger require an app or internet connection?
We offer both standalone models (using RFID cards or plug-and-play) and Wi-Fi connected models that work with Apps and OCPP 1.6j applications.
