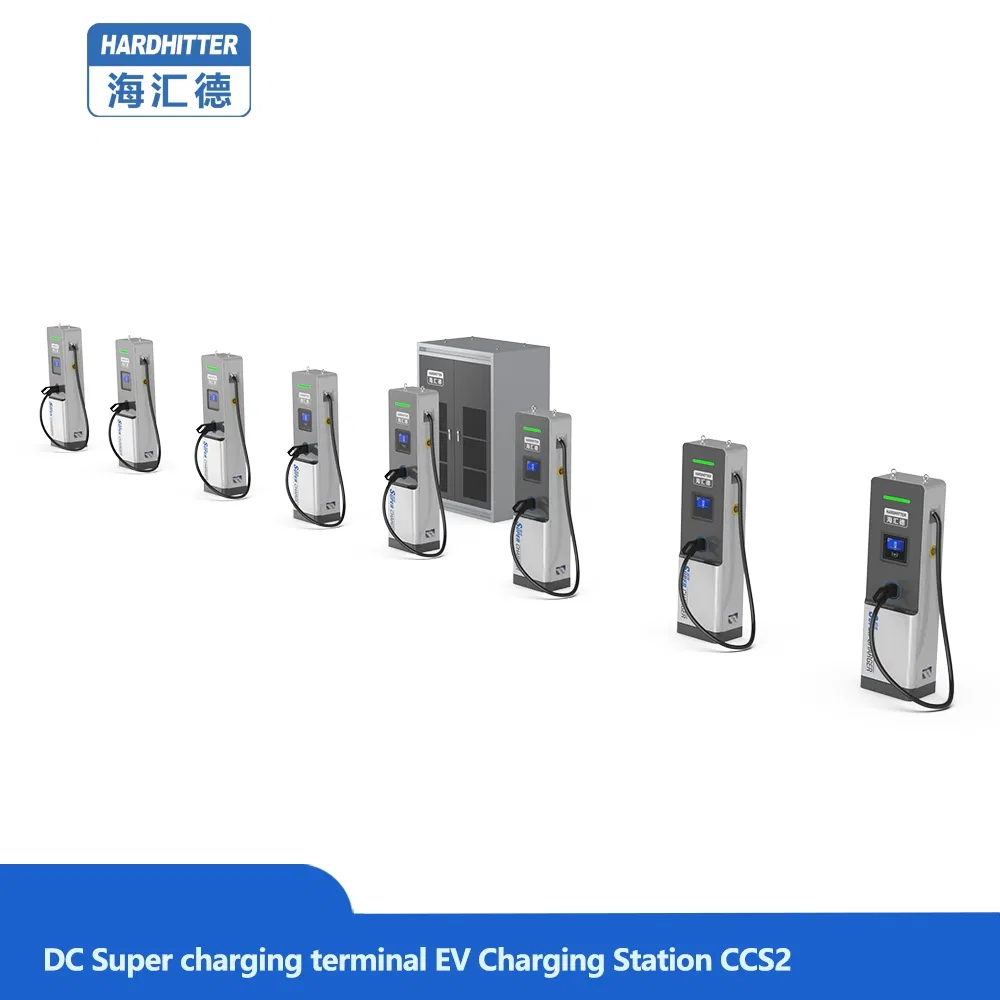

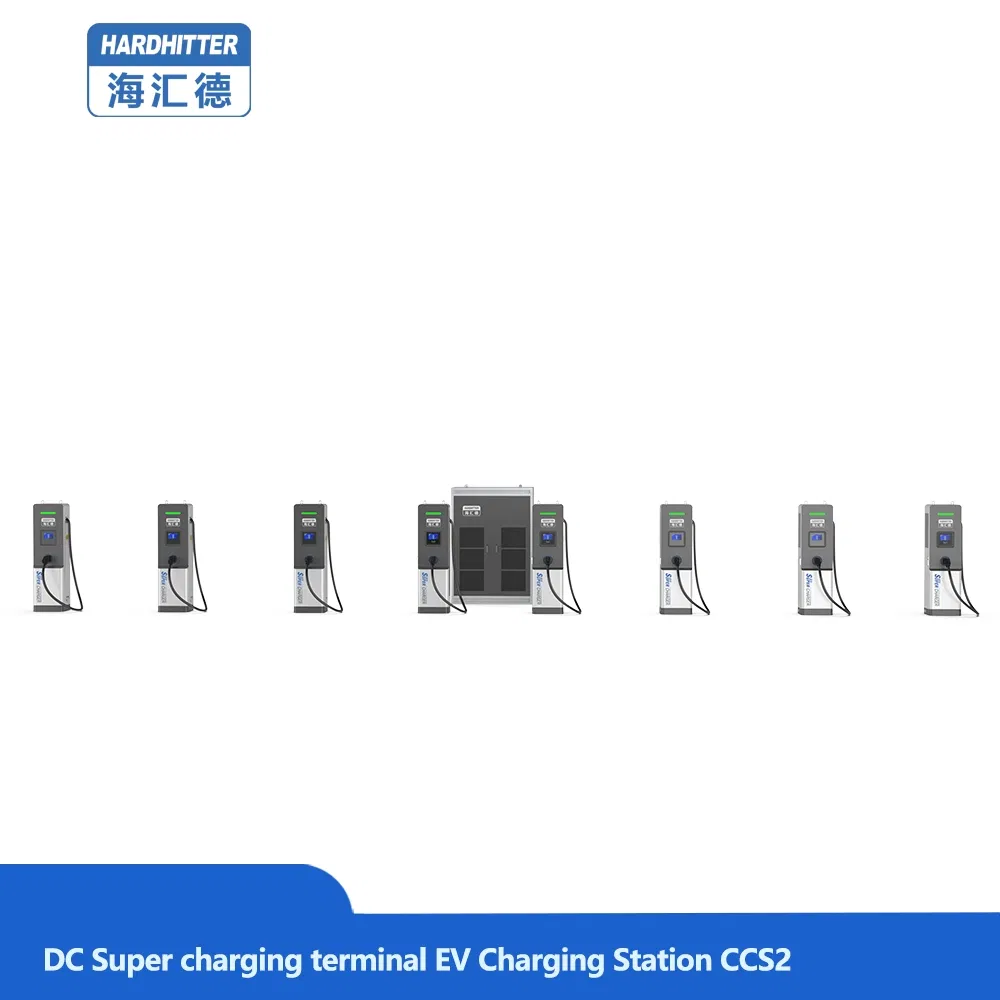

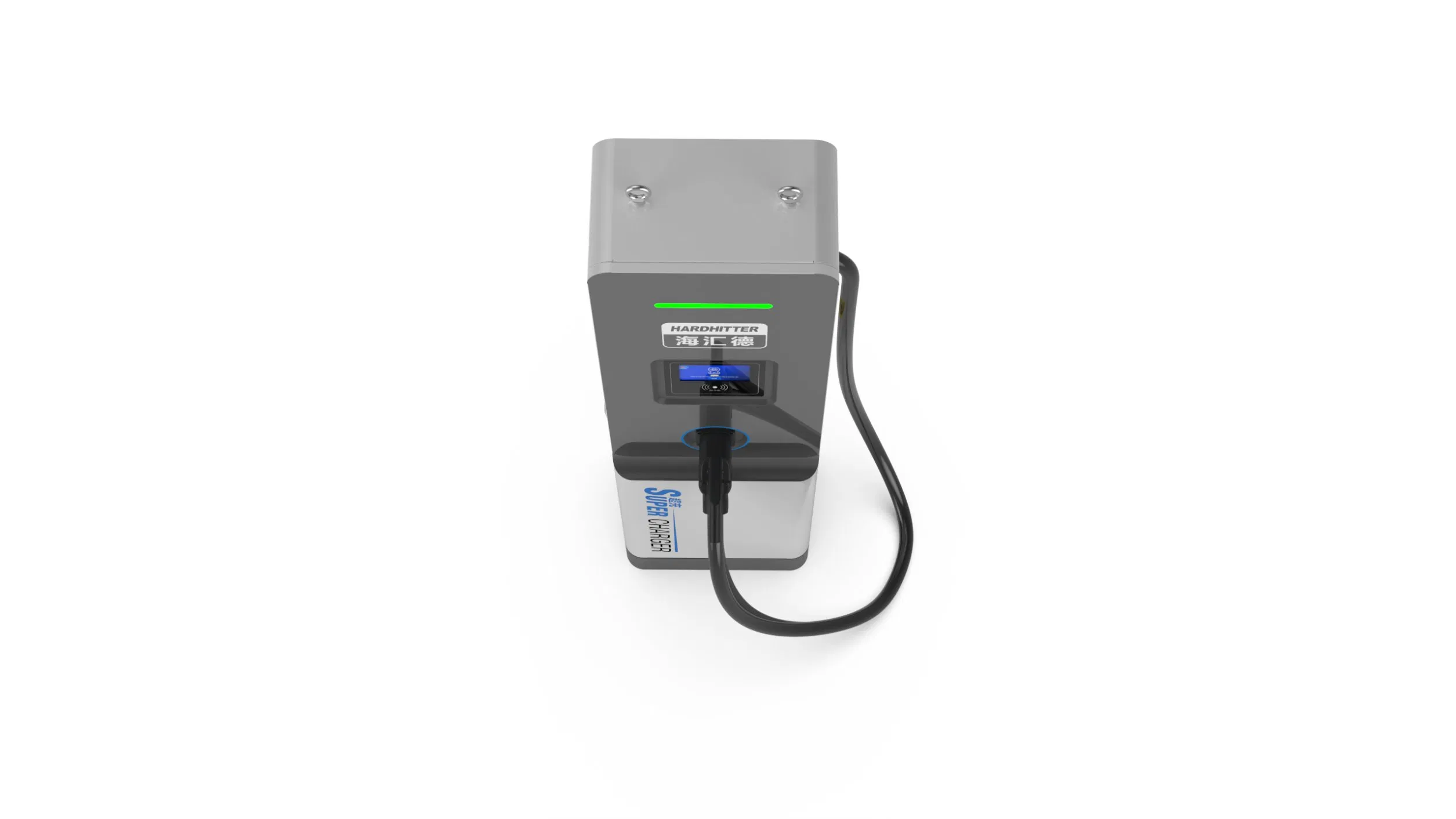

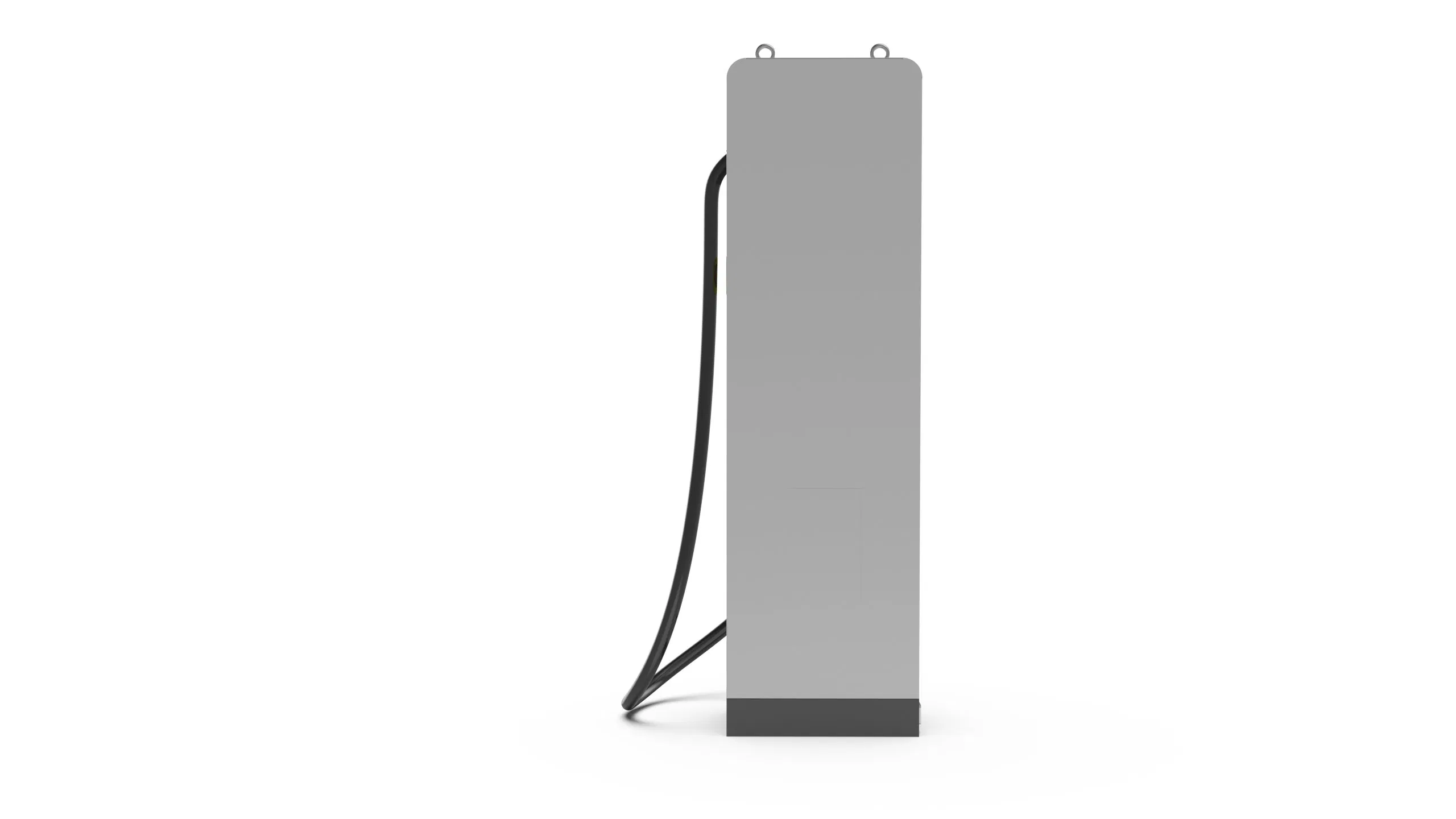

DC Super Charging Terminal: Key Component of Intelligent EV Charging Scheduling Systems
DC Super Charging Terminal: Key Component of Intelligent EV Charging Scheduling Systems
DC Super Charging Terminal: Key Component of Intelligent EV Charging Scheduling Systems
DC Super Charging Terminal: Key Component of Intelligent EV Charging Scheduling Systems
DC Super Charging Terminal: Key Component of Intelligent EV Charging Scheduling Systems
1 / 5
DC Super Charging Terminal: Key Component of Intelligent EV Charging Scheduling Systems
DC Super Charging Terminal: Key Component of Intelligent EV Charging Scheduling Systems
DC Super Charging Terminal: Key Component of Intelligent EV Charging Scheduling Systems
DC Super Charging Terminal: Key Component of Intelligent EV Charging Scheduling Systems
DC Super Charging Terminal: Key Component of Intelligent EV Charging Scheduling Systems

DC Super Charging Terminal: Key Component of Intelligent EV Charging Scheduling Systems

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
HQC21-HMI-111-E
Charging Interfaces
One Pile with One Charge
Location
Public Use
Installation
Floor Type
Charge Method
Quick Charge
Output Voltage
200~1000V
Output Current
600A(GB/T), 500A(CCS2)
Charging Interface
GB/T, CCS2
Operation Temp
-40°c~+60°c
Protection Level
IP55
Weight
≈140kg
Specification
500mm*1750mm*350mm
Product Parameters
Output Voltage200~1000V
Output Current600A(GB/T), 500A(CCS2)
Charging InterfaceGB/T, CCS2
Interface7 Inch Touch Screen, LED
Start ModeSwipe Card, Scan Code, Plug and Charge, Platform remote start, button Start
Protection LevelIP55
Altitude≤2000m
Dimensions500*350*1900mm(W*D*H)
Gun Cable LengthCar: 4.5m / Bus: 6m
Communication InterfaceCAN
Wiring MethodBottom Incoming
Key Features
High Power: Single gun rated current 600A, peak current 800A, maximum charging power up to 600kW.
High Protection: Electrical components and heat dissipation system are designed separately, with a protection level up to IP55.
Low Noise: Equipped with a high-efficiency liquid cooling heat dissipation system; noise is less than 50dB under standard conditions.
High Safety: Intelligent temperature control algorithm accurately monitors the charging gun to prevent abnormal temperature rise.
Strong Compatibility: Compatible with various series of charging cabinets, prefabricated compartments, and charging box transformers.
Convenient Upgrade: Conventional terminals can be easily upgraded to super charging terminals, increasing current by more than twice.
Ultra-Fast Charging: Maximum output power of 600kW allows for over 300 kilometers of travel after just 5 minutes of charging.
Product Display

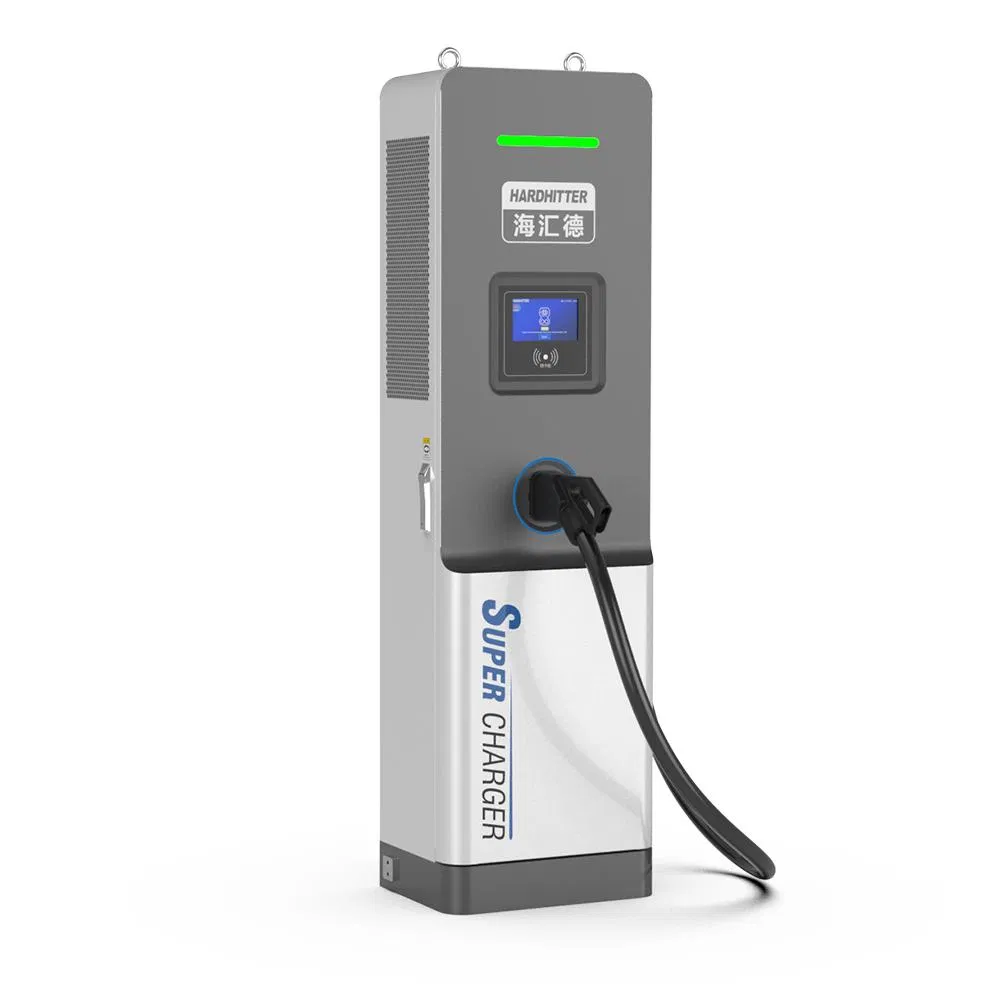

Charging Terminal 1

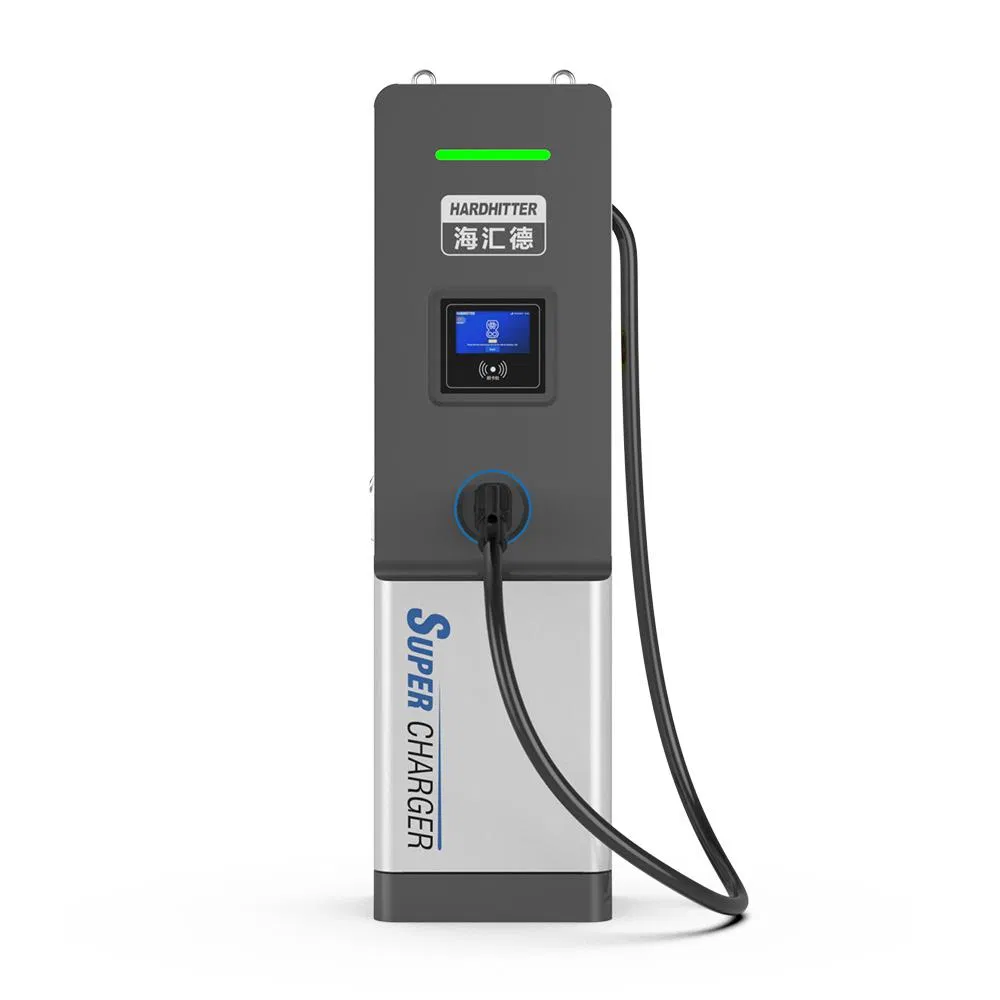

Charging Terminal 2

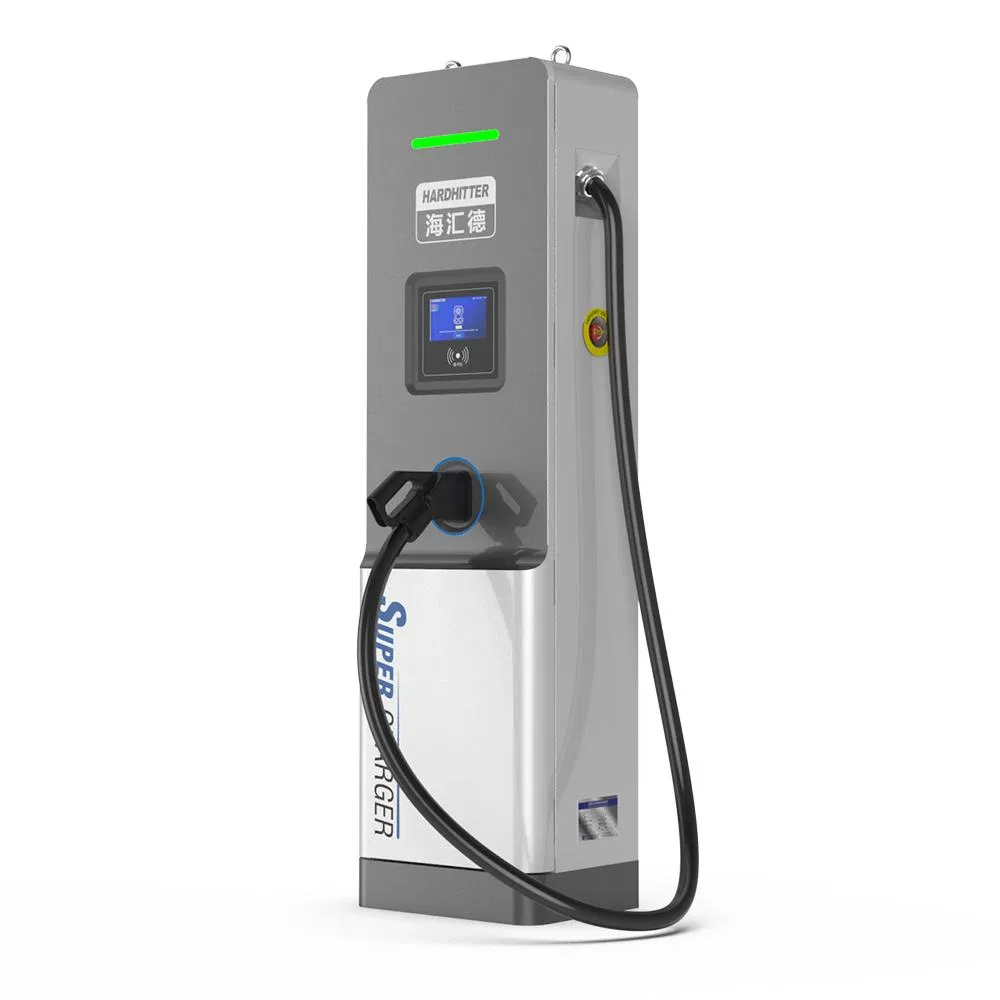

Charging Terminal 3

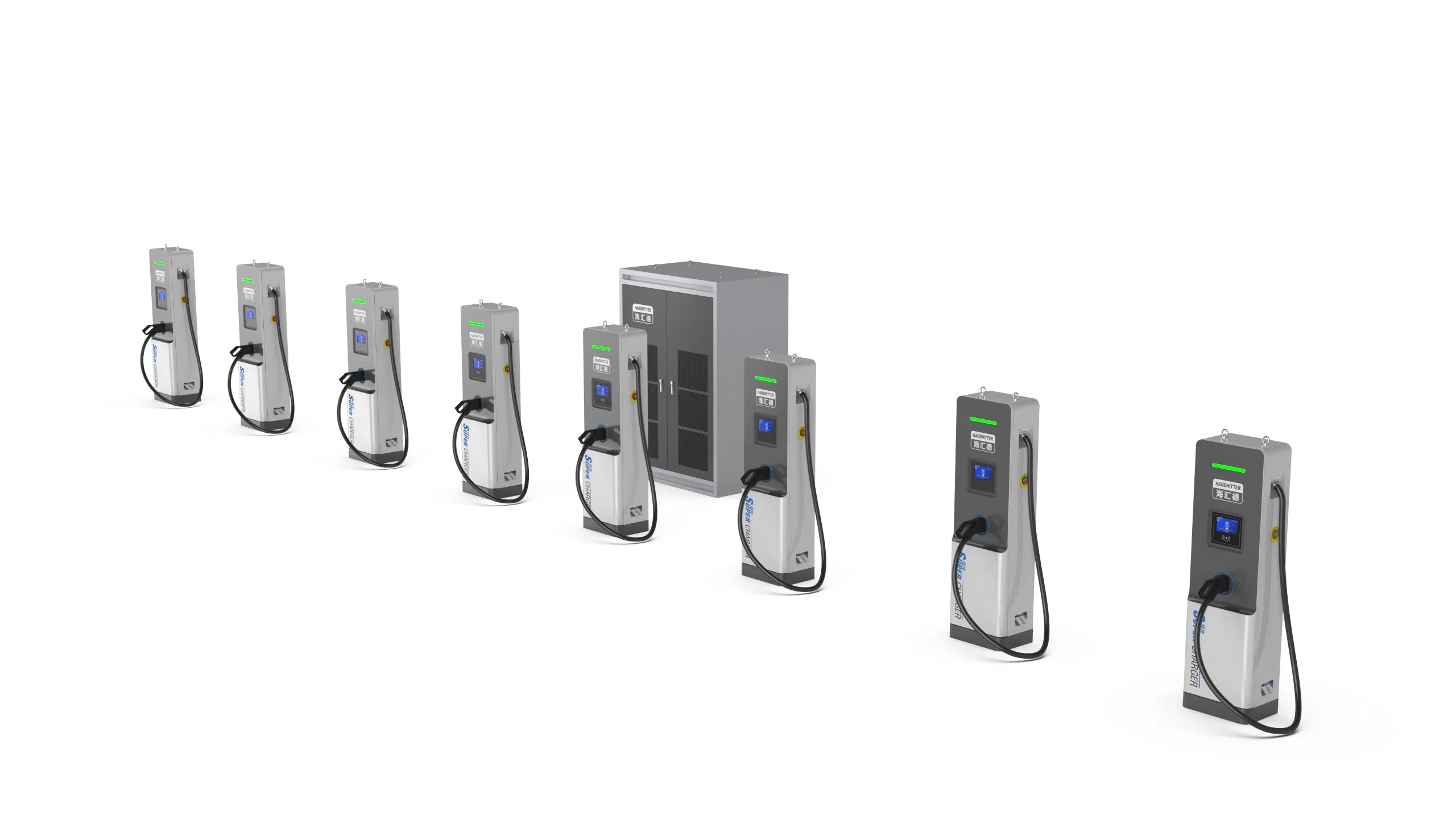

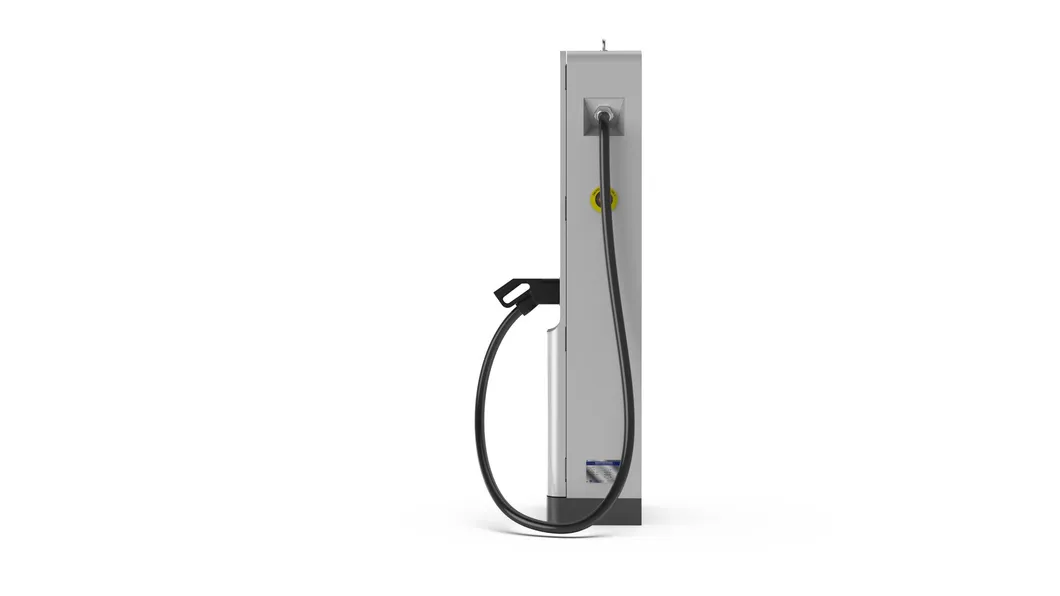

Terminal Application 1
Terminal Application 2
Terminal Application 3
Technical Overview

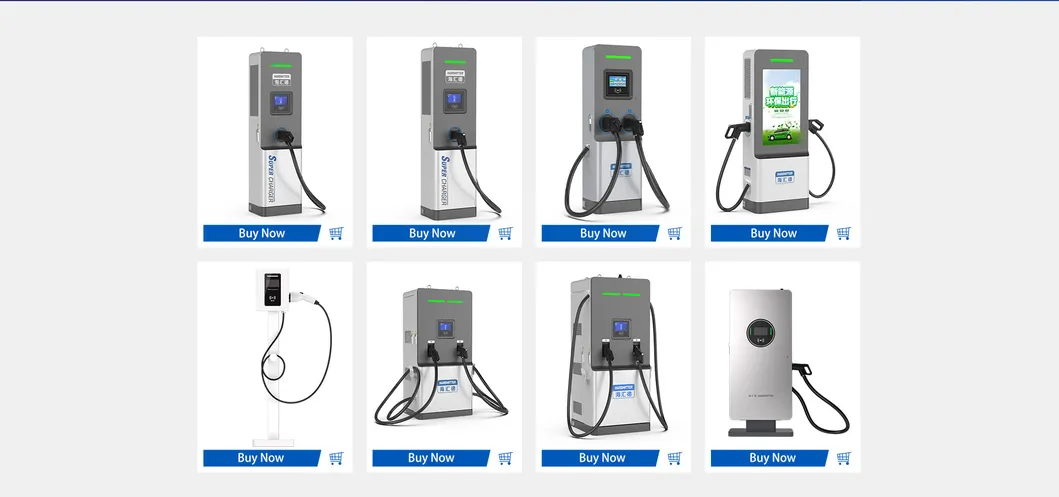

Detail 1 Detail 2 Detail 3 Detail 4 Detail 5 Detail 6 Detail 7 Detail 8 Detail 9
Frequently Asked Questions
Q What is the typical lead time for an order?
Generally, it takes 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q Do your products have quality certification?
Yes, we have a strict quality control system. Our EV charging products are passed with CE and TUV certifications to ensure the best quality.
Q How long is the product warranty?
The warranty for our products is 12 months upon the receipt of your shipment under normal operating circumstances.
Q What after-sale service guarantees do you provide?
For every after-sale request within the warranty period, we appoint a one-on-one technician for timely online assistance and troubleshooting.
Q Can you provide customized OEM/ODM services?
Yes, we have been involved with OEM and ODM projects since 2012, providing professional customized services for our global clients.
Q Can the EV charger charge all electric vehicles on the road?
Yes, our EV chargers work with all electric vehicle models. Note that Tesla vehicles require a J1772 to Tesla adapter to work with our charging stations.
