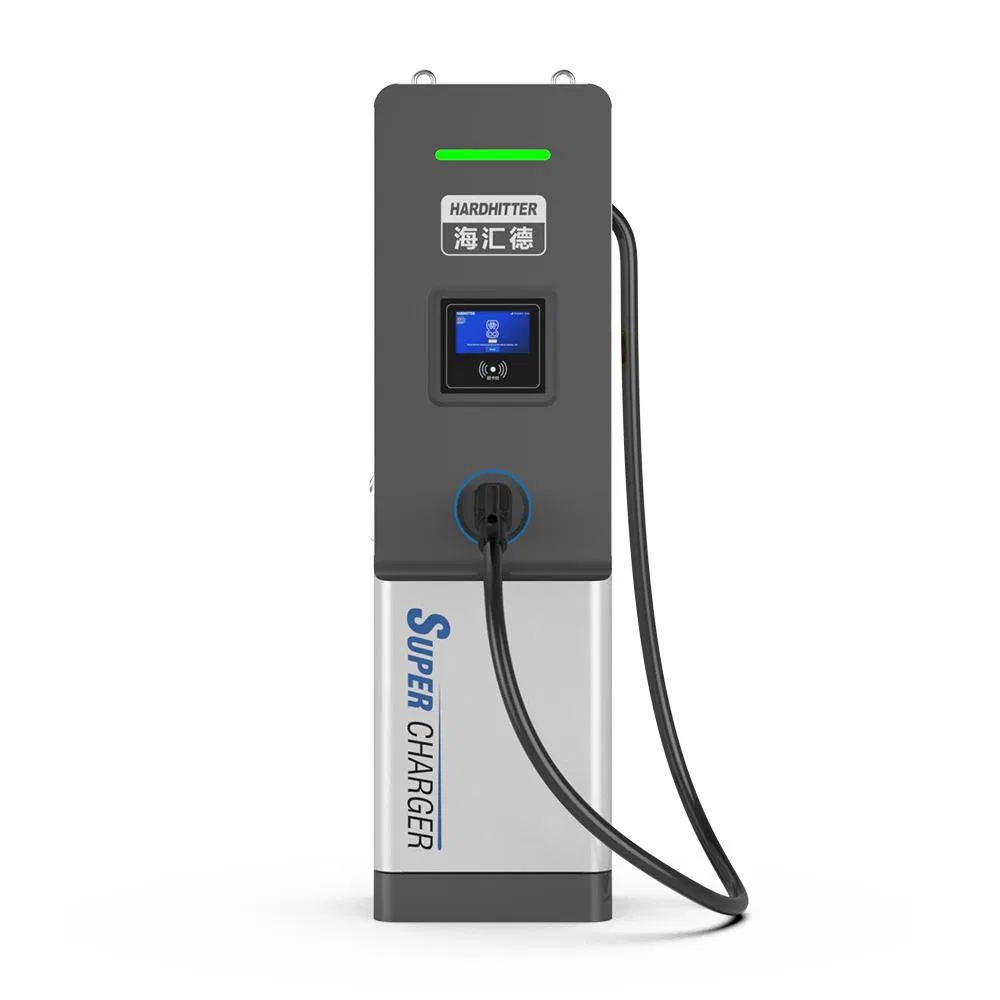

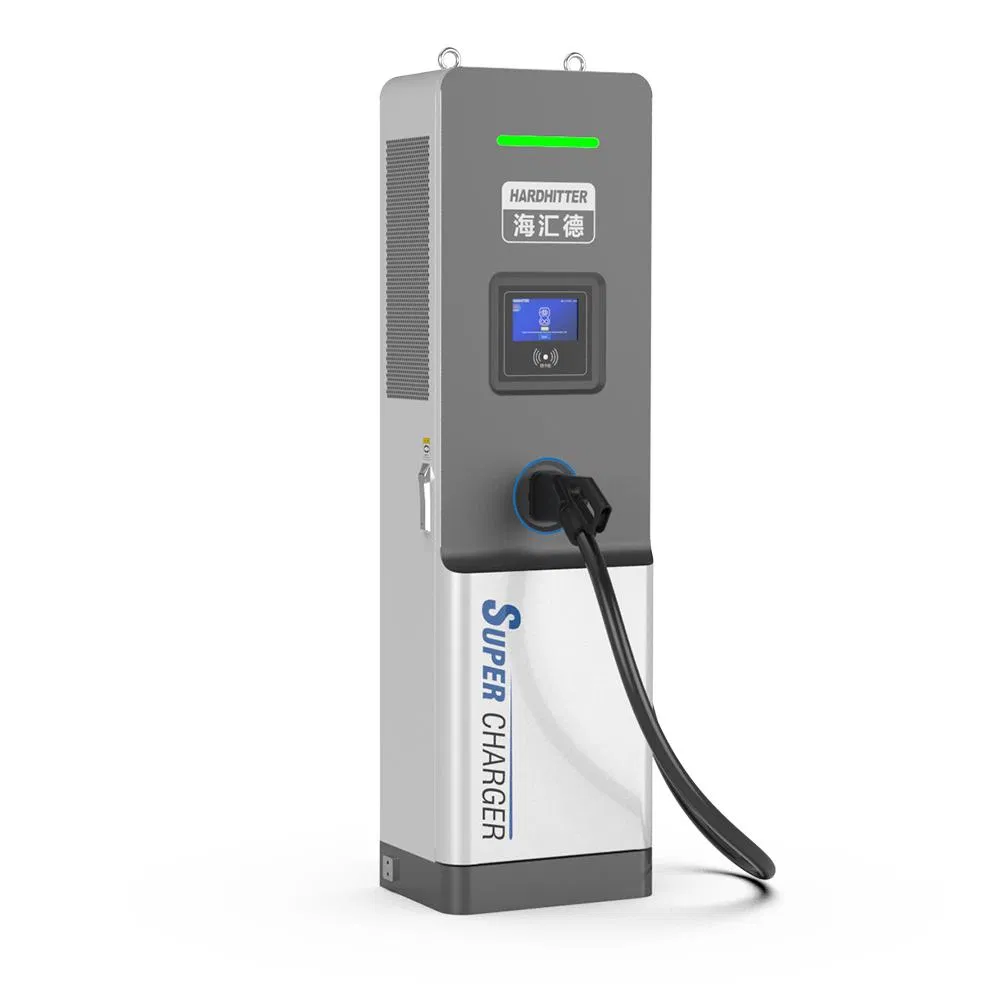

🔹 Basic Info.
Charging Interfaces
One Pile with One Charge
Charge Method
Quick Charge
Output Current
600A(GB/T), 500A(CCS2)
Charging Interface
GB/T, CCS2
Operation Temp.
-40°c~+60°c
Specification
500mm*1750mm*350mm
📊 Product Parameters
| Output Voltage | 200~1000V |
| Output Current | 600A(GB/T), 500A(CCS2) |
| Charging Interface | GB/T, CCS2 |
| Interface | 7 Inch Touch Screen, LED |
| Start Mode | Swipe Card, Scan Code, Plug and Charge, Platform remote start, Button Start |
| Protection Level | IP55 |
| Altitude | ≤2000m |
| Dimensions | 500*350*1900mm (W*D*H) |
| Gun Thread Length | Car: 4.5m / Bus: 6m |
| Communication | CAN |
| Wiring Method | Bottom Incoming |
⭐ Product Features
⚡
High Power: Single gun rated current 600A, peak current 800A, maximum charging power up to 600kW.
🛡️
High Protection: Electrical components and heat dissipation system are designed separately, with a protection level of up to IP55.
🔇
Low Noise: Equipped with high-efficiency liquid cooling; heat dissipation increased by 50%, noise is less than 50dB under standard conditions.
🌡️
High Safety: Intelligent temperature control correction algorithm accurately monitors the charging gun to prevent abnormal temperature rise.
⚙️

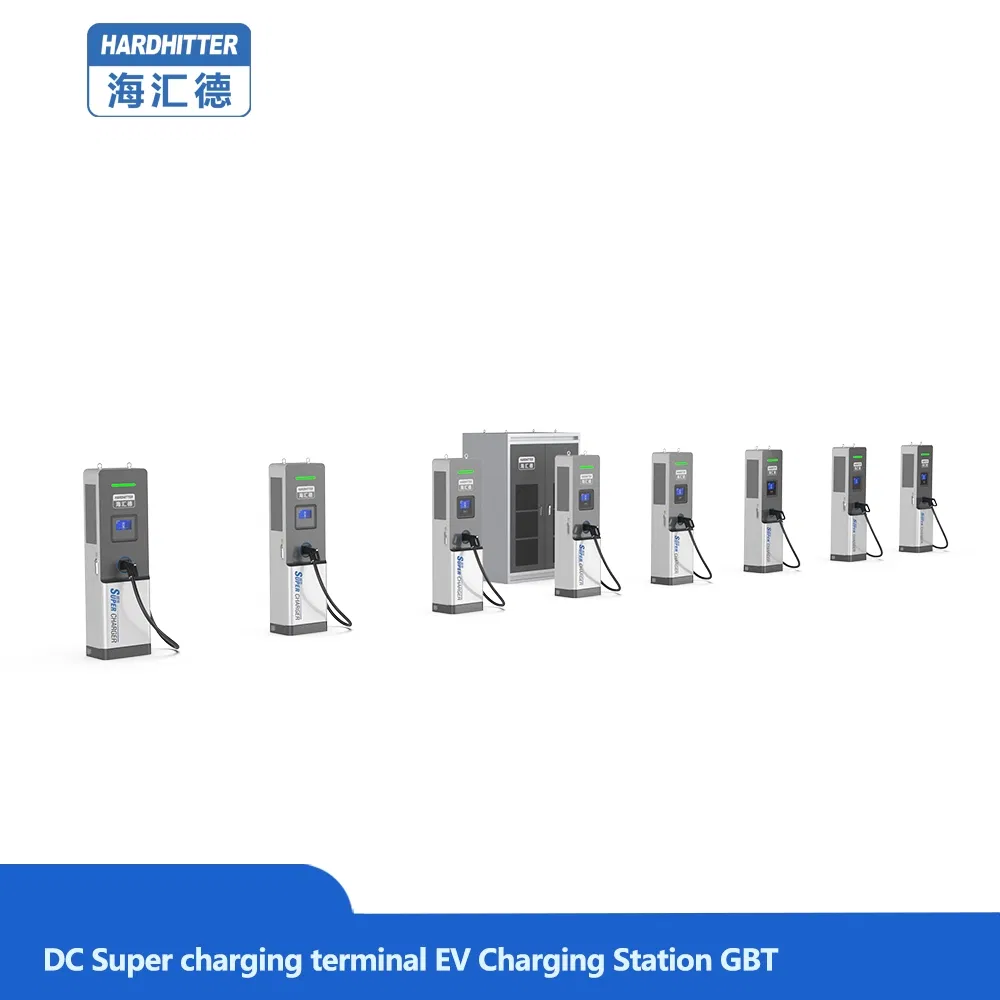

Strong Compatibility: Compatible with entire series of charging cabinets and prefabricated compartments.
🚀
Super Charging Speed: Maximum output of 600kW; can provide over 300 kilometers of range after just 5 minutes of charging.
❓ Frequently Asked Questions
How about your Lead time?
Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Do your products have quality certification?
Yes, we have a strict quality control system. Our EV charging products have passed CE & TUV certifications to ensure the best quality.
How long is the warranty?
The warranty of our products is 12 months upon the receipt of your shipment under normal circumstances.
What is your guarantee of after-sale service?
We respond to every after-sale request within the warranty period by appointing a one-on-one technician for timely online assistance.
Can you provide customized service?
Yes, we have been involved with OEM and ODM projects since 2012, allowing us to provide professional customized services for our clients.
Can the EV charger charge all Electric Vehicles?
Yes, our chargers work with all Electric Vehicles. Note that Tesla vehicles require a J1772 to Tesla adapter to operate with our charging units.
