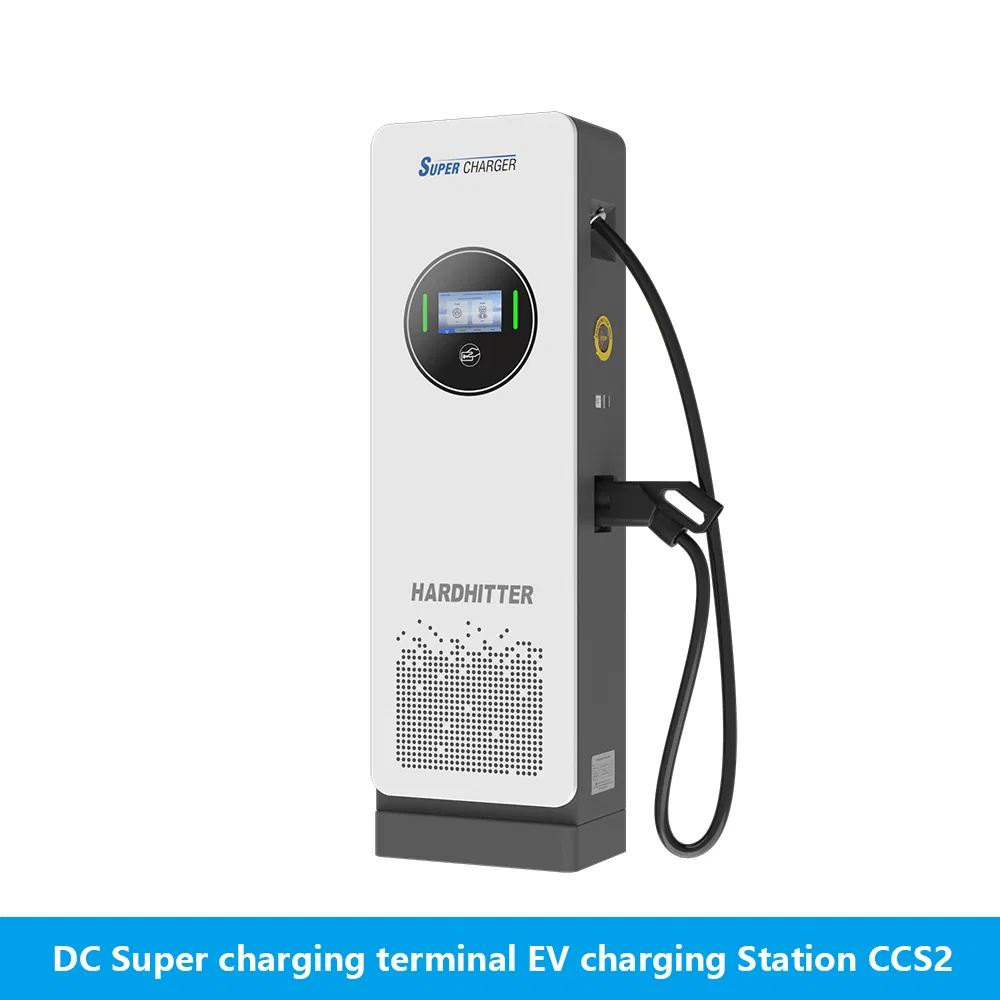

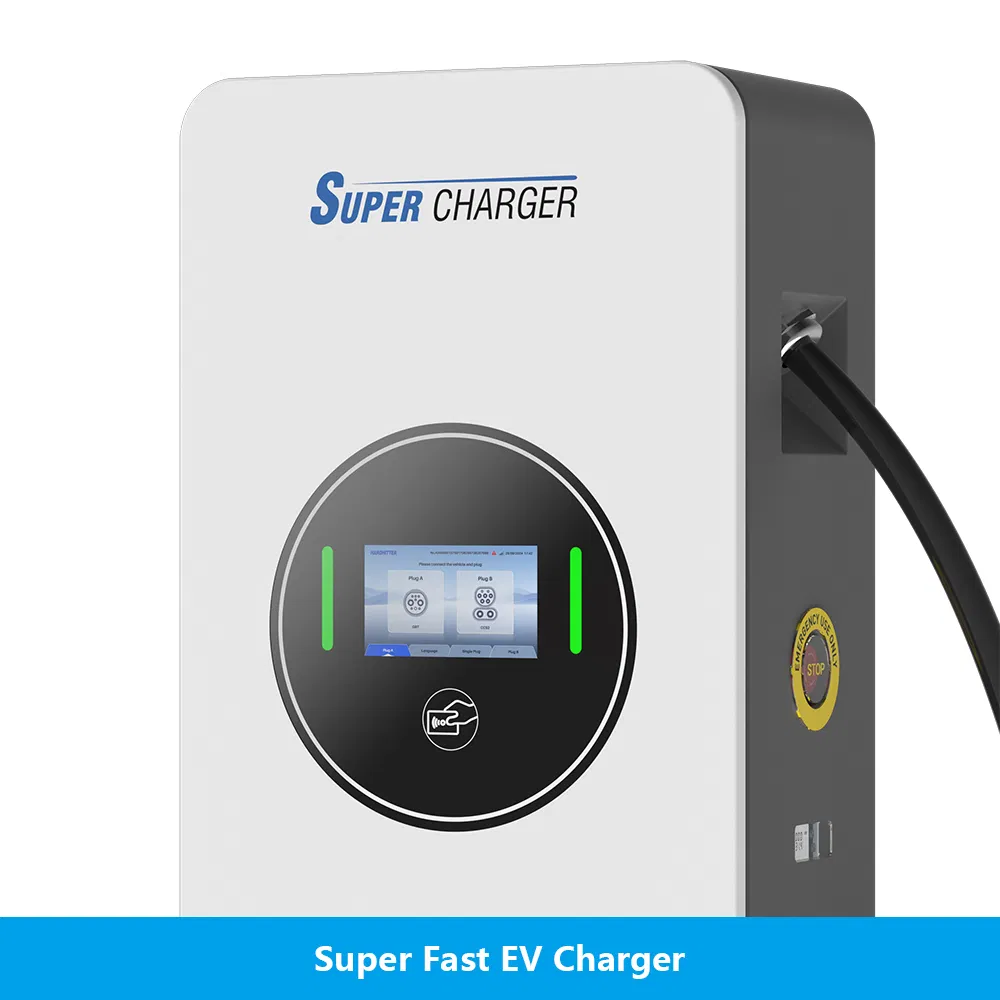

China-Made Intelligent Power Scheduling Charging System with DC Super Charging Terminal

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Specifications

Model NO.HQC21-HMI-111-E
InstallationFloor Type
Charge MethodQuick Charge
Output Voltage200~1000V
Output Current600A(GB/T), 500A(CCS2)
Charging InterfaceGB/T, CCS2
Operation Temperature-40°c~+60°c
Protection LevelIP55
Weight≈140kg
Dimensions500mm*1750mm*350mm

Technical Parameters

Interface7 Inch Touch Screen, LED
Start ModeSwipe Card, Scan Code, Plug and Charge, Remote Start
Altitude≤2000m
Gun Thread LengthCar: 4.5m / Bus: 6m
CommunicationCAN
Wiring MethodBottom Incoming
Capacity3000 Pieces Per Year

Key Features

High Power Output Maximum charging power up to 600kW with peak current of 800A, ensuring rapid energy delivery.
Advanced Protection IP55 protection level with separate design for electrical components and heat dissipation systems.
Low Noise Operation Equipped with high-efficiency liquid cooling, reducing noise to less than 50dB under standard conditions.
Intelligent Safety Smart temperature control algorithm monitors the charging gun to prevent abnormal temperature rises.
Ultra-Fast Charging Output power allows for over 300 kilometers of travel after just 5 minutes of charging.
Easy Upgrades Compatible with standard terminals and can be easily upgraded to super charging power levels.

Product Showcase

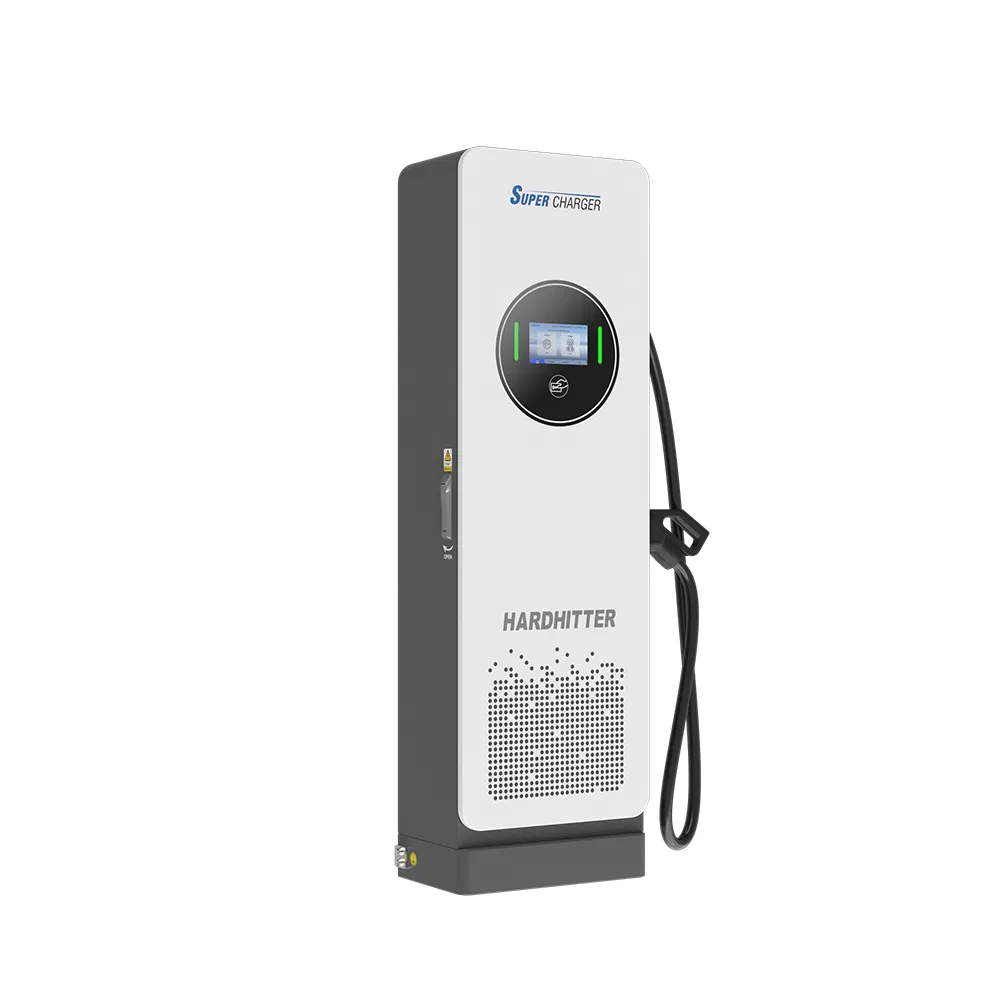

Intelligent Power Scheduling Charging System

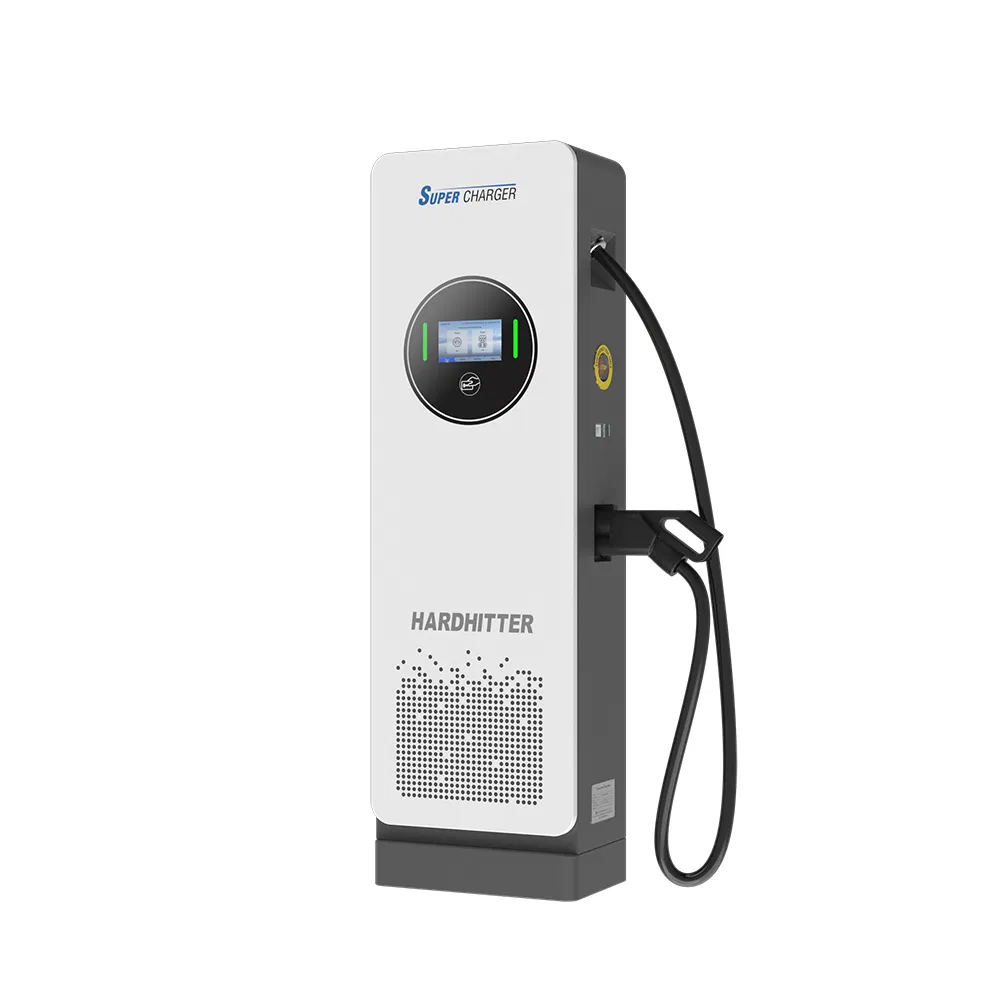

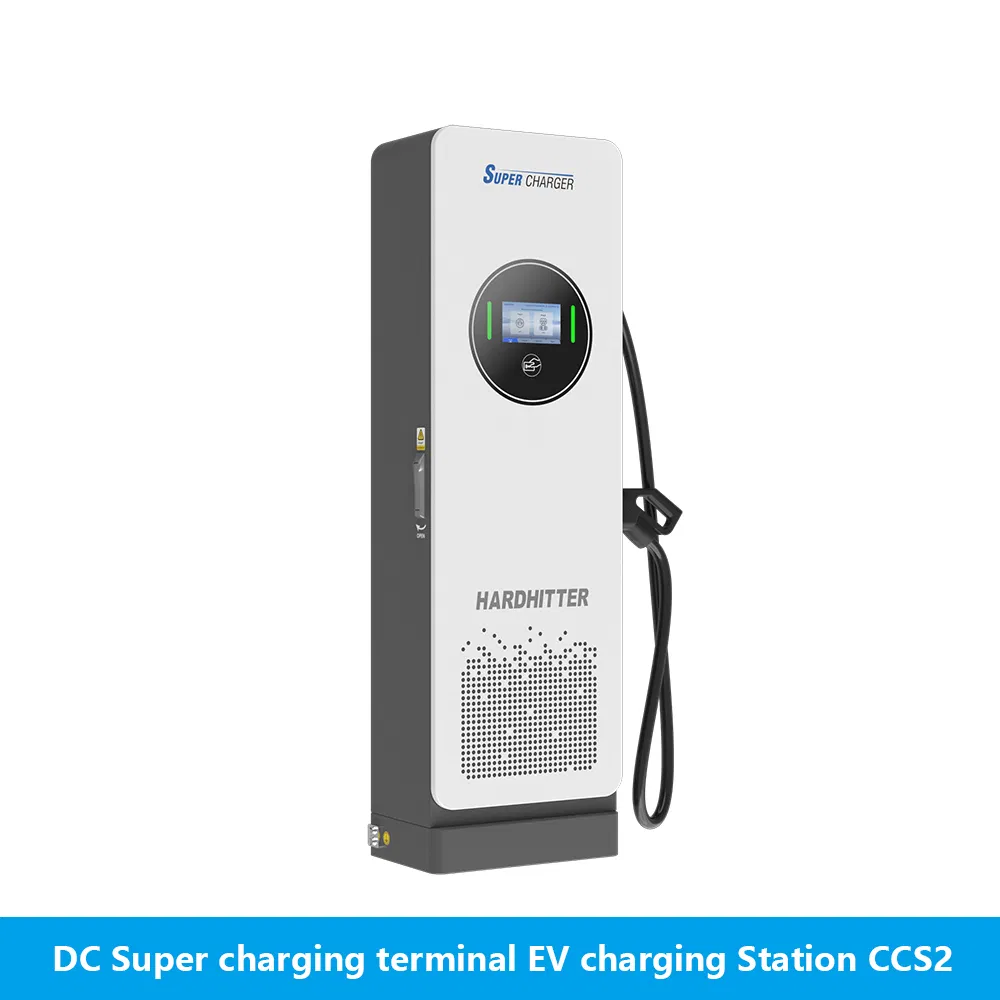

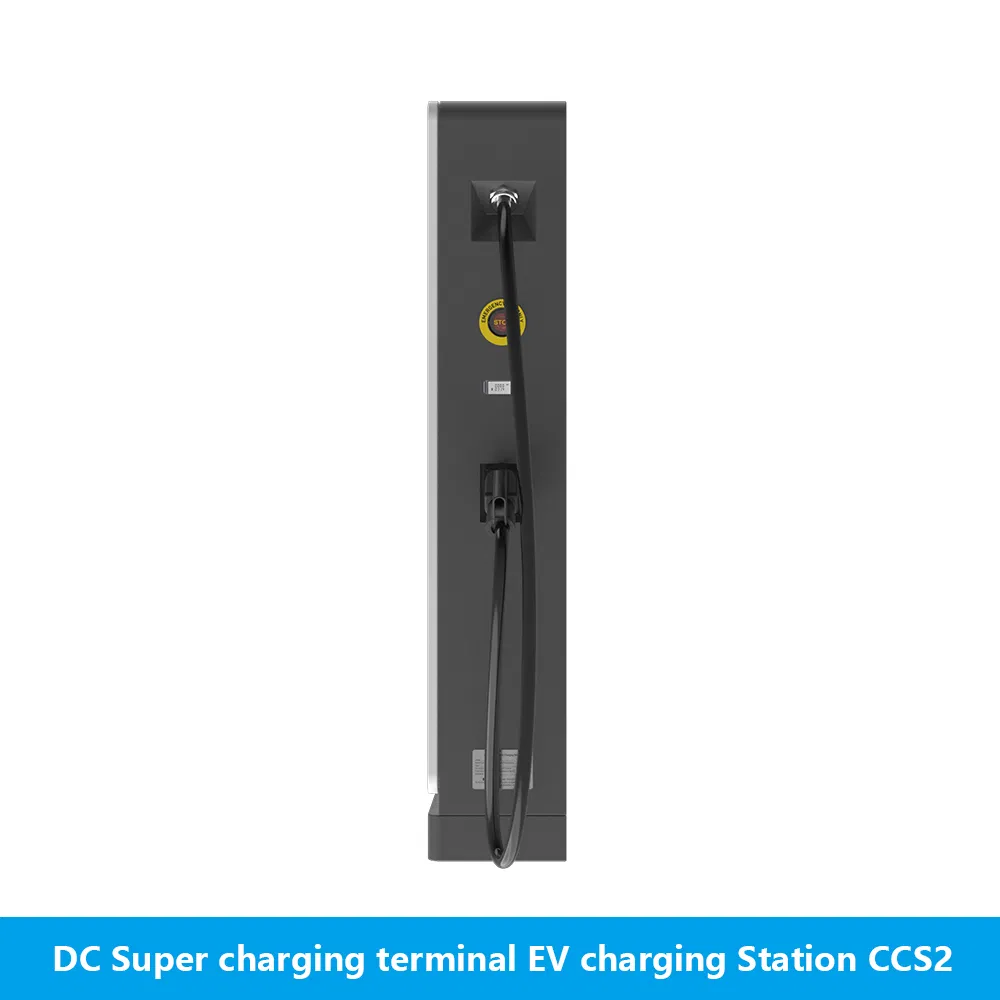

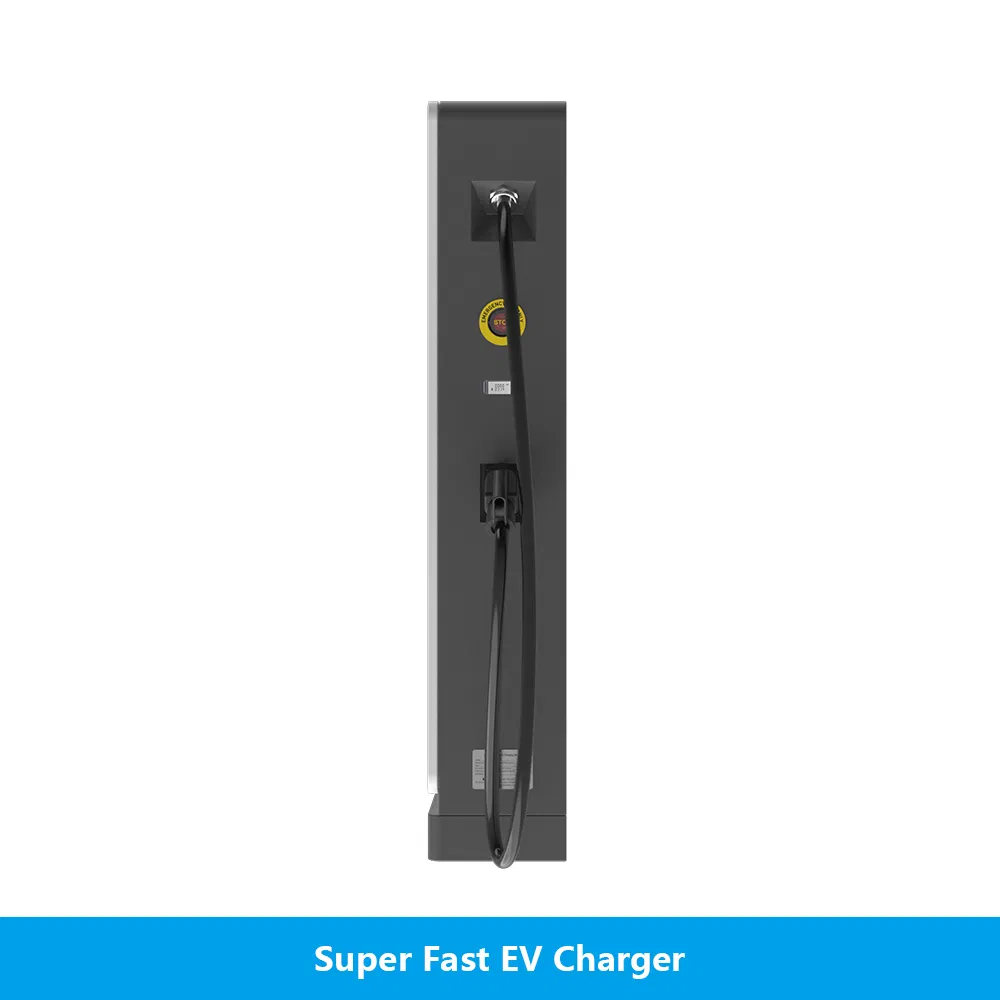

DC Super Charging Terminal

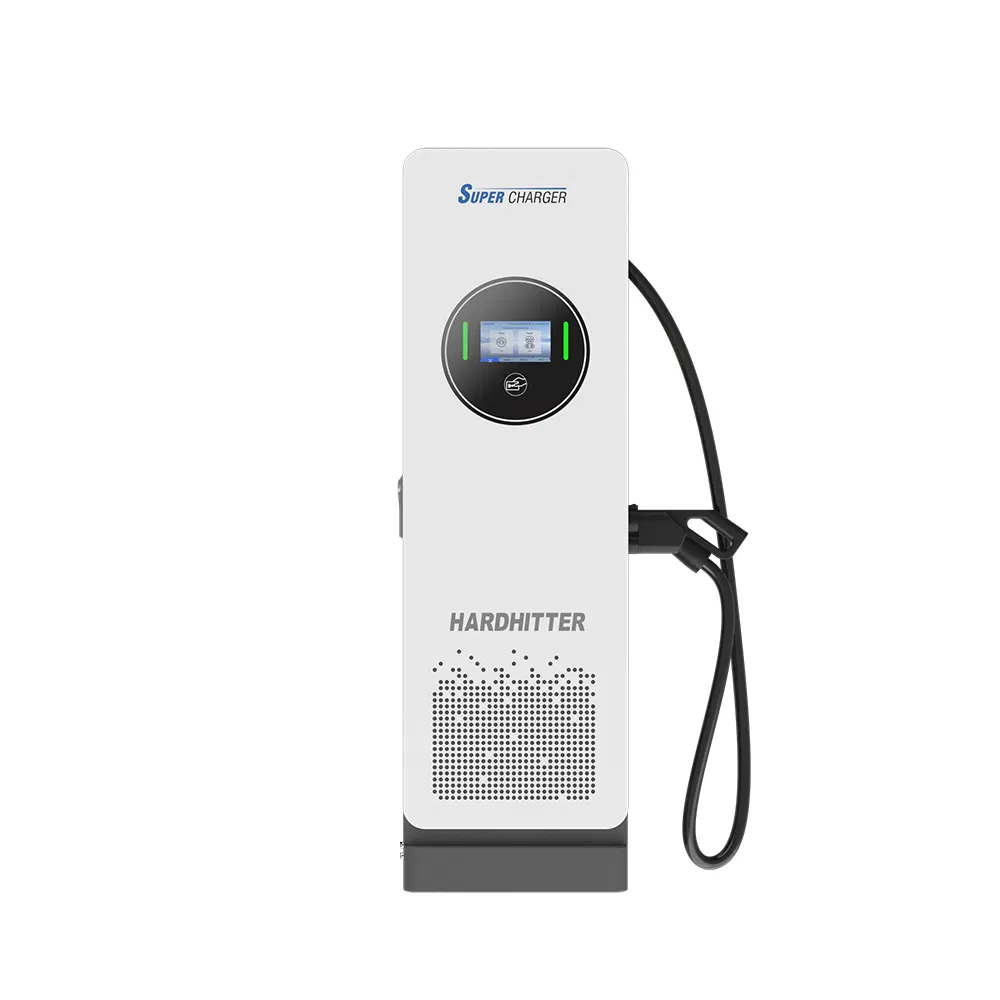

EV Charging Station Interface
🏢

Industrial Display

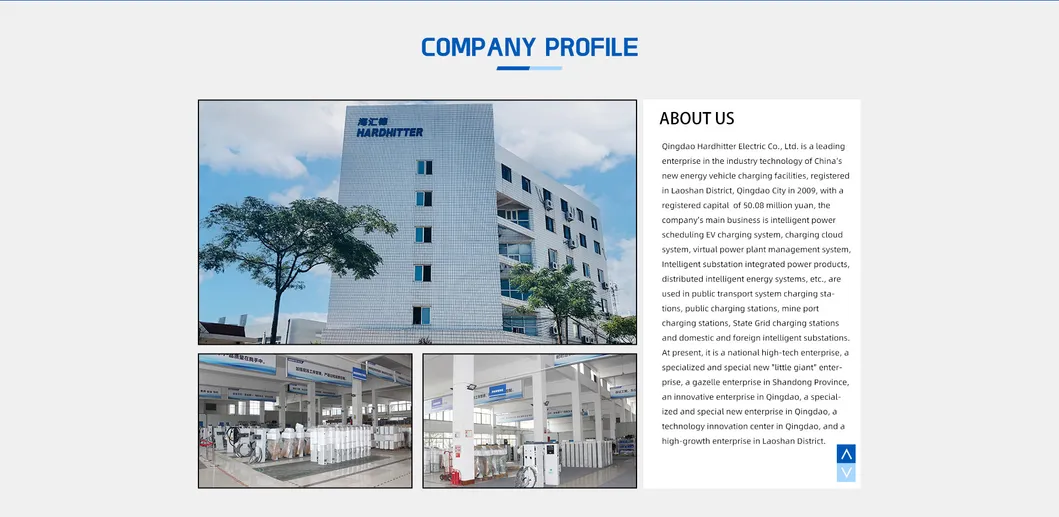

Industrial Facility View
Manufacturing Line
Testing Area
System Infrastructure
?

Frequently Asked Questions

What is the typical lead time for orders?
Generally, it takes 15 to 25 days after receiving advance payment. The specific time depends on the items and order quantity.
Do the products have quality certifications?
Yes, we maintain a strict quality control system. Our EV charging products are passed with CE and TUV certifications.
How long is the product warranty?
The warranty is 12 months upon the receipt of your shipment under normal operating circumstances.
What kind of after-sale service do you provide?
We appoint a one-on-one technician for timely online assistance to respond to every after-sale request within the warranty period.
Can these chargers work with all electric vehicles?
Yes, our EV chargers are compatible with all electric vehicles. Note that Tesla vehicles require a J1772 to Tesla adapter to operate with these units.
Do the chargers require an internet connection?
We offer both standalone models (using RFID cards or plug-and-play) and Wi-Fi connected models that work with Apps and OCPP 1.6j applications.
