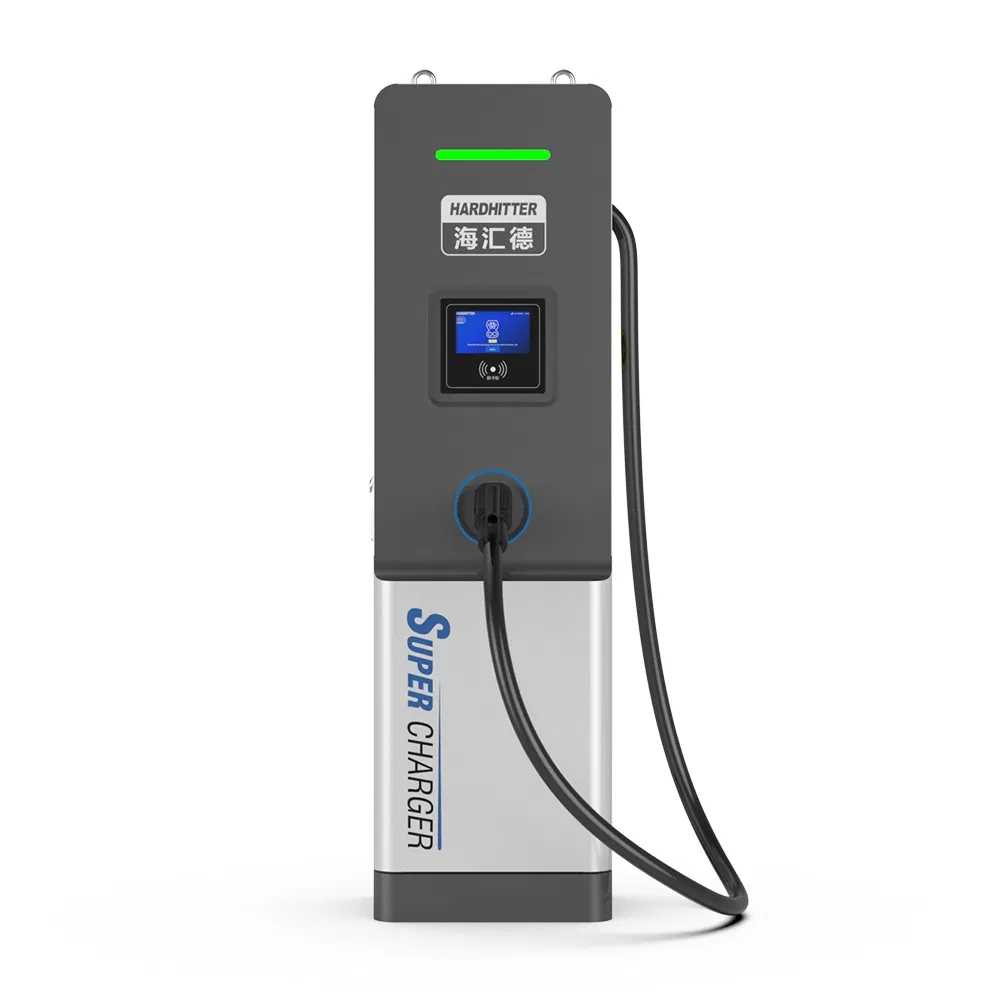

Intelligent Power Scheduling Charging System: Highlighting The DC Super Charging Terminal for Evs
Intelligent Power Scheduling Charging System: Highlighting The DC Super Charging Terminal for Evs
Intelligent Power Scheduling Charging System: Highlighting The DC Super Charging Terminal for Evs
Intelligent Power Scheduling Charging System: Highlighting The DC Super Charging Terminal for Evs
Intelligent Power Scheduling Charging System: Highlighting The DC Super Charging Terminal for Evs
1 / 5
Intelligent Power Scheduling Charging System: Highlighting The DC Super Charging Terminal for Evs
Intelligent Power Scheduling Charging System: Highlighting The DC Super Charging Terminal for Evs
Intelligent Power Scheduling Charging System: Highlighting The DC Super Charging Terminal for Evs
Intelligent Power Scheduling Charging System: Highlighting The DC Super Charging Terminal for Evs
Intelligent Power Scheduling Charging System: Highlighting The DC Super Charging Terminal for Evs

Intelligent Power Scheduling Charging System: Highlighting The DC Super Charging Terminal for Evs

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
HQC21-HMI-111-E
Charging Interfaces
One Pile with One Charge
Location
Public Use
Installation
Floor Type
Charge Method
Quick Charge
Output Voltage
200~1000V
Output Current
600A(GB/T), 500A(CCS2)
Charging Interface
GB/T, CCS2
Operation Temp.
-40°c~+60°c
Gun Cable Length
Car:4.5m Bus:6m
Protection Level
IP55
Weight
≈140kg
HS Code
8504409999
Capacity
3000 Pieces Per Year

Product Description

Technical Parameters

Output Voltage200~1000V
Output Current600A(GB/T), 500A(CCS2)
Charging InterfaceGB/T, CCS2
Interface7 Inch Touch Screen, LED
Start ModeSwipe Card, Scan Code, Plug and Charge, Platform remote start, Button Start
Protection LevelIP55
Operation Temperature-40°C~+60°C
Altitude≤2000m
Dimensions500*350*1900mm (W*D*H)
Wiring MethodBottom Incoming

Key Features

  • High Power: Single gun rated current 600A, peak current 800A, maximum charging power up to 600kW.
  • High Protection: Separate design for electrical components and heat dissipation system, achieving IP55 protection level.
  • Low Noise: High-efficiency liquid cooling system increases heat dissipation by 50% while keeping noise under 50dB.
  • High Safety: Intelligent temperature control algorithm monitors the charging gun and reduces current if abnormal heat is detected.
  • Convenient Upgrade: Easily upgrade conventional terminals to super charging terminals, doubling charging current capacity.
  • Ultra-Fast Charging: Maximum output of 600kW provides over 300 kilometers of range in just 5 minutes of charging.

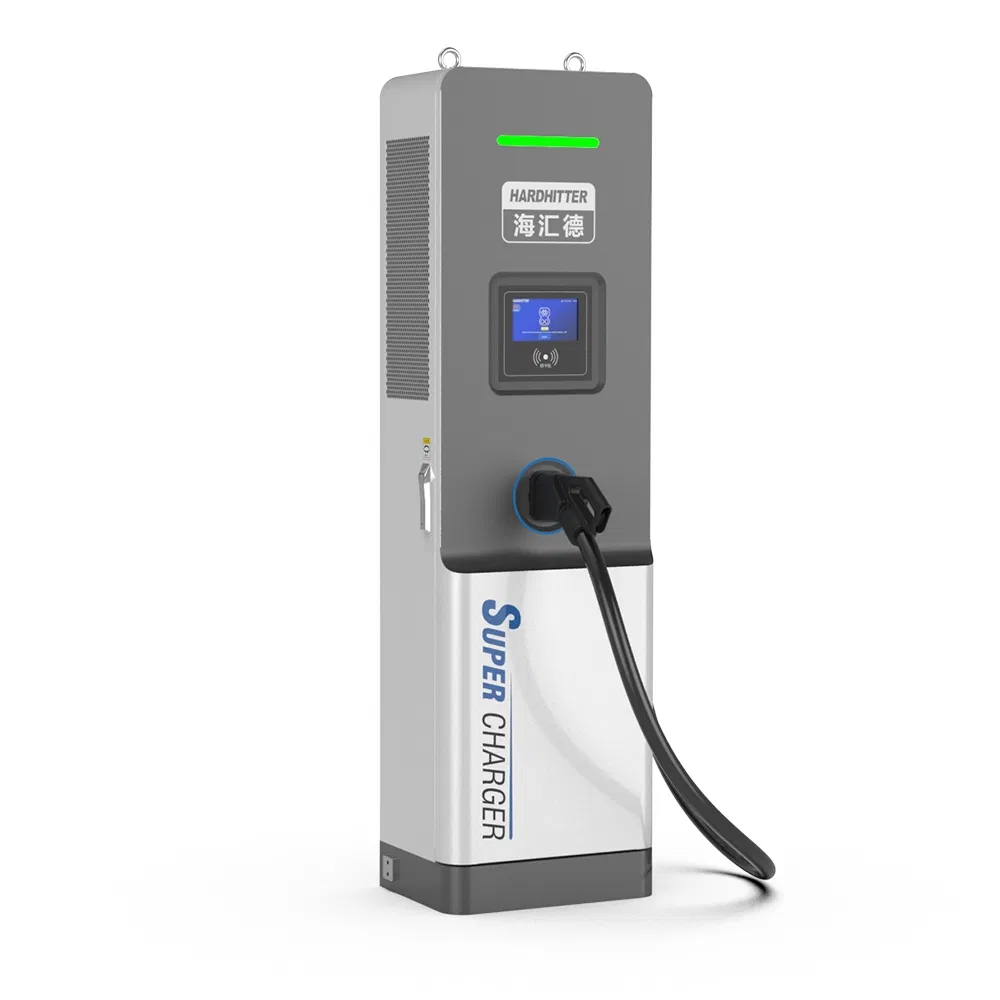

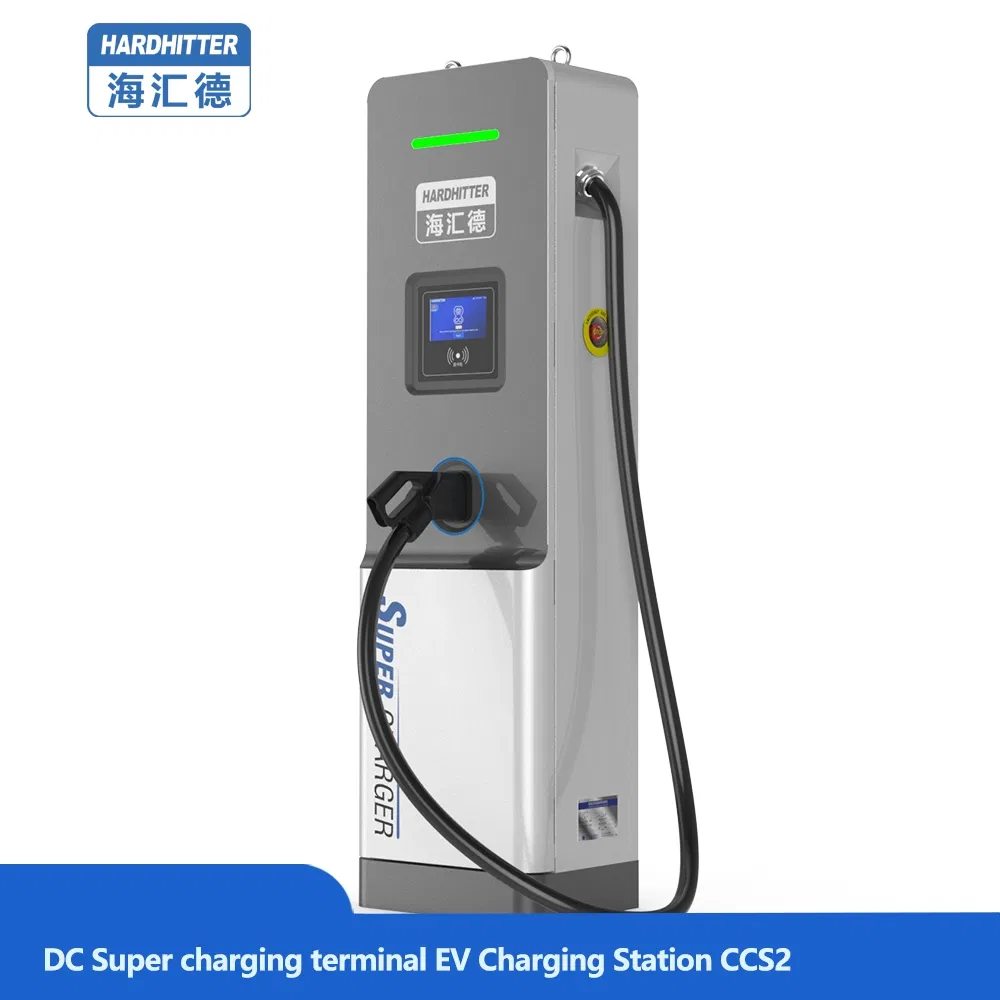

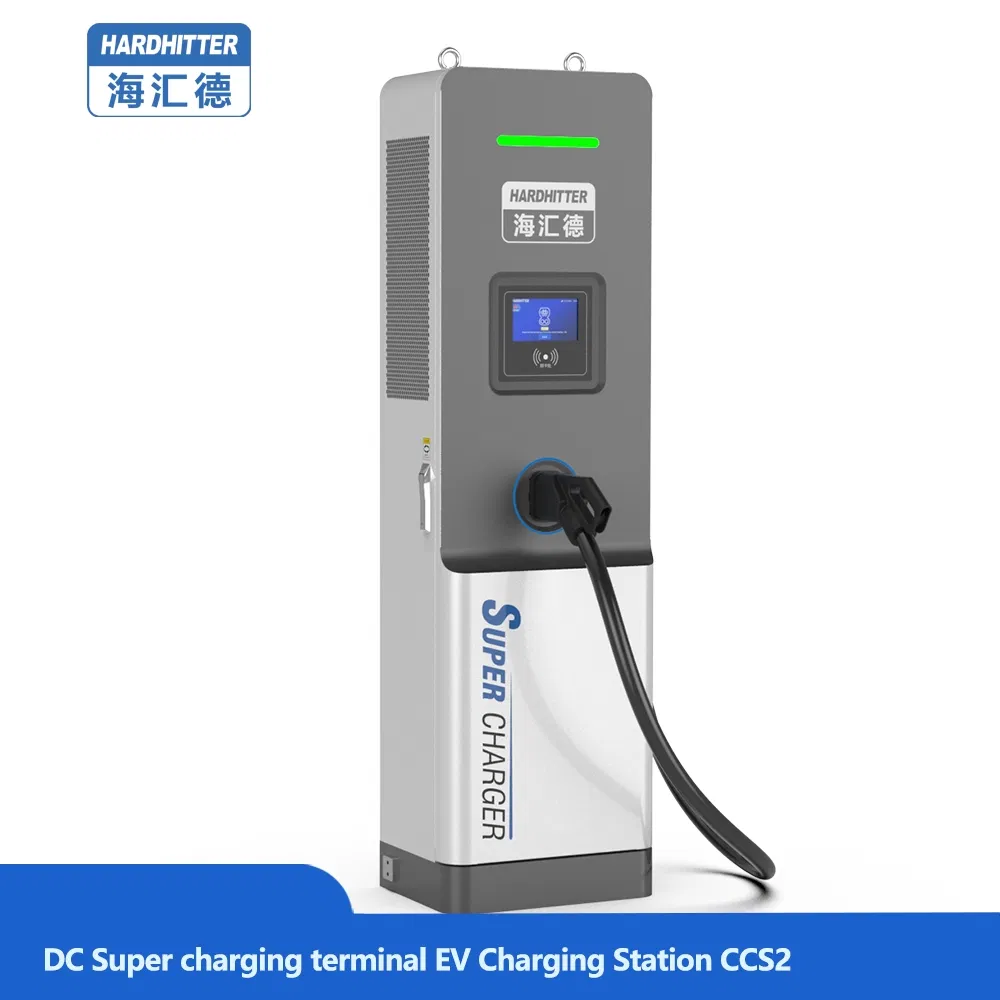

DC Super Charging Terminal

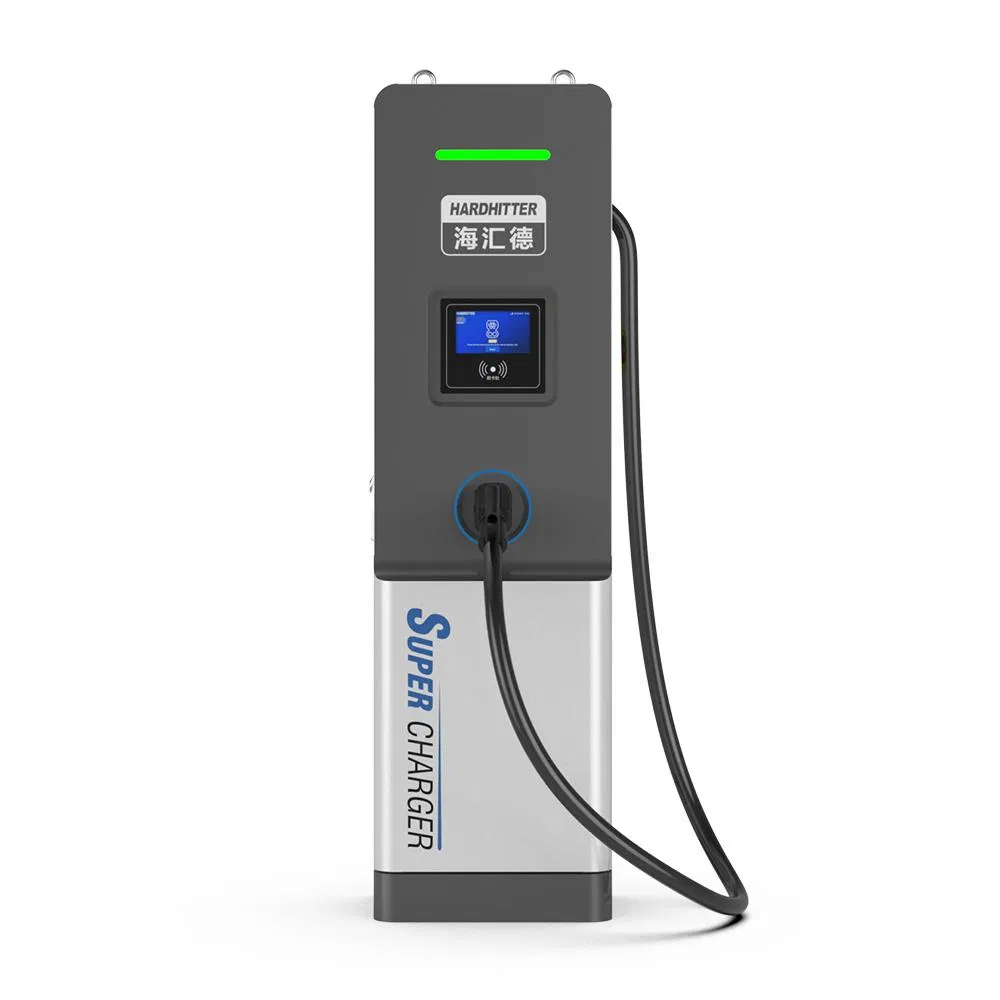

EV Charging System Details

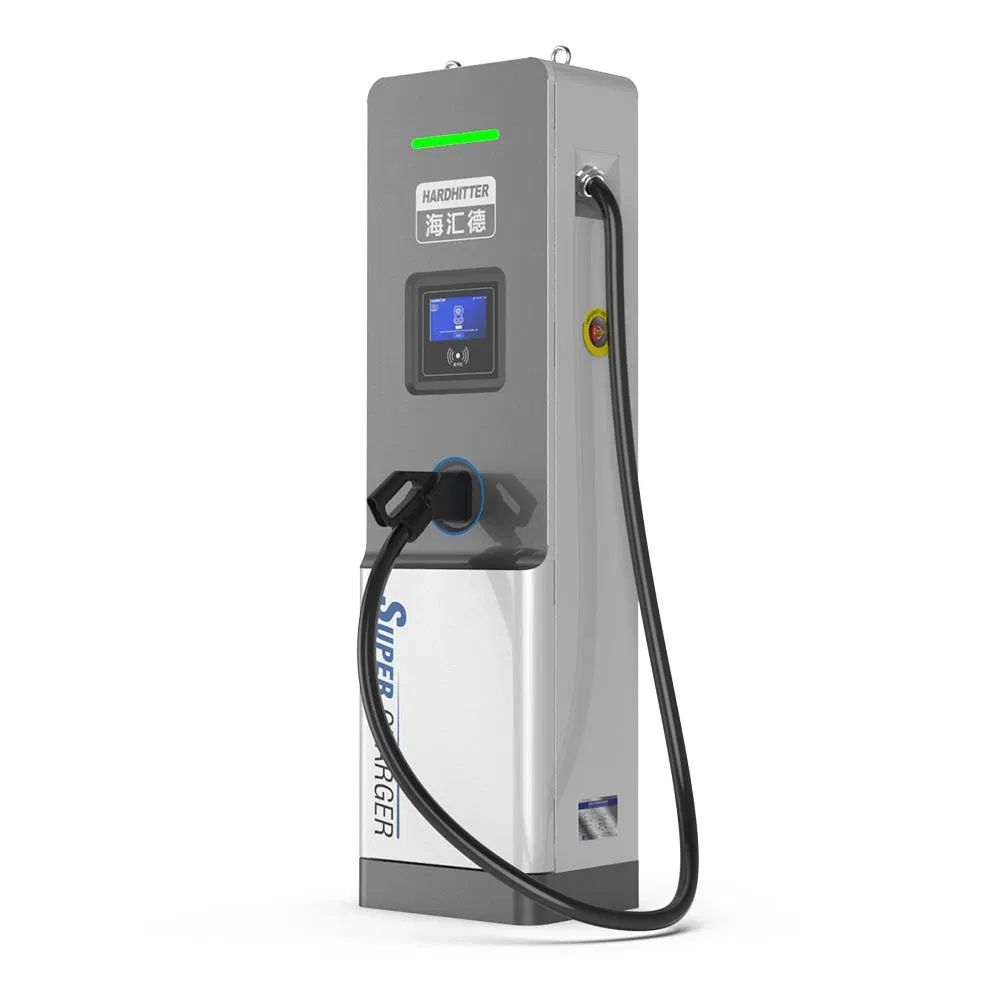

Intelligent Charging Interface

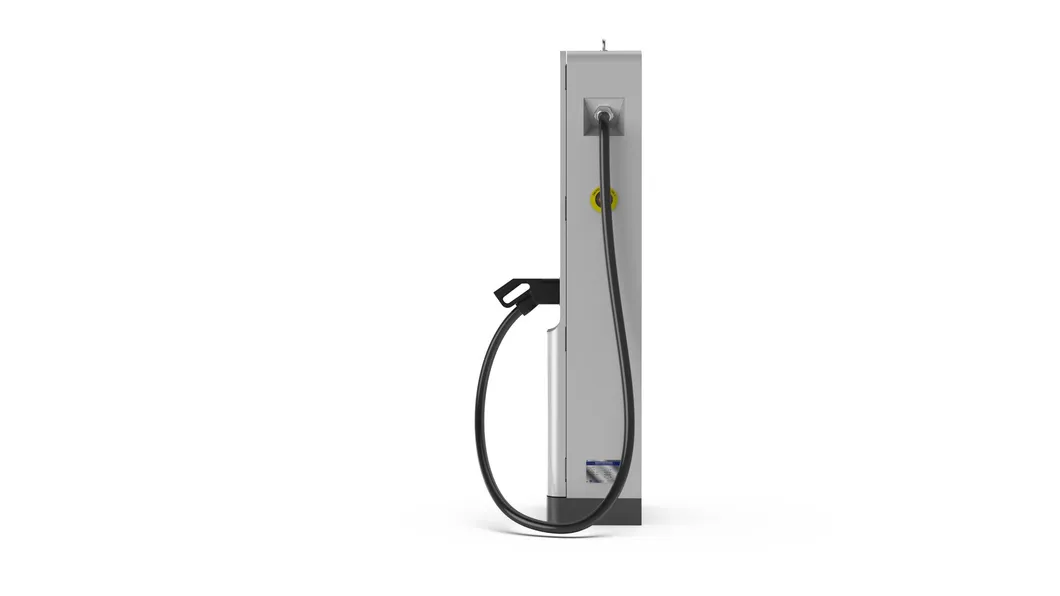

Charging Station Component

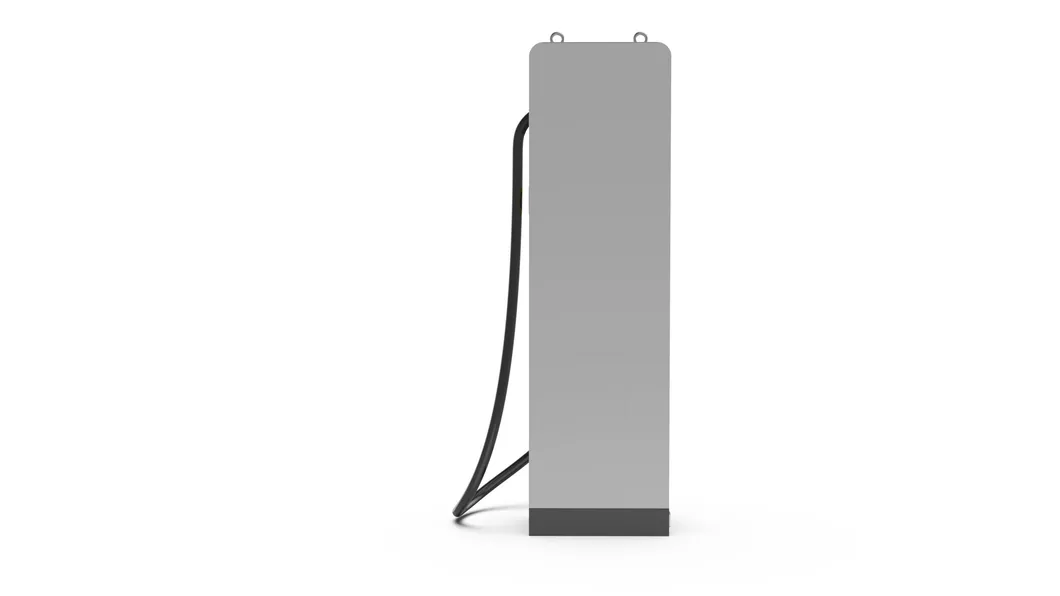

Charging Power Module

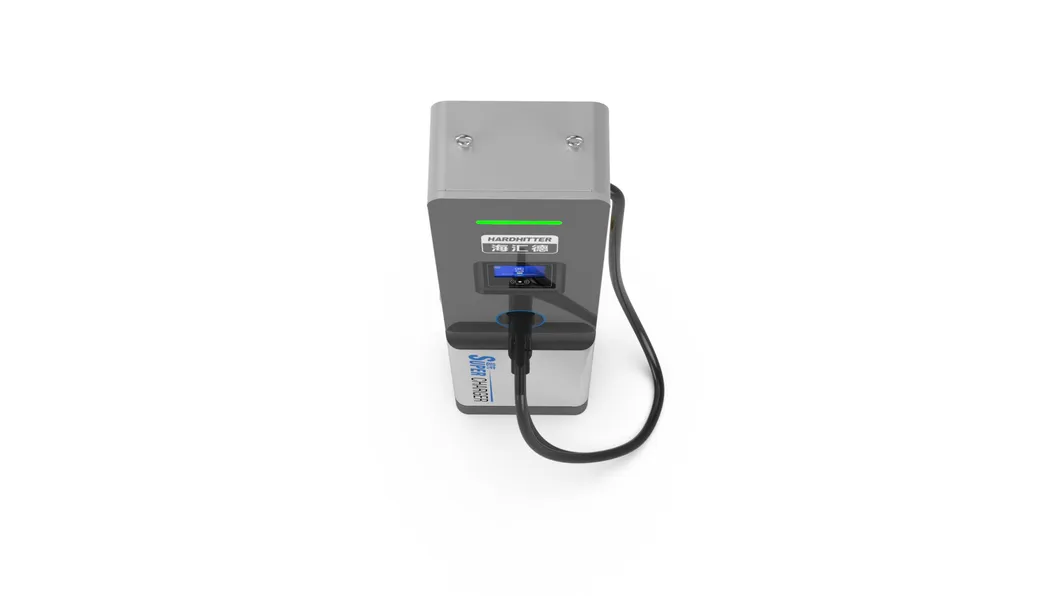

Super Charging Technology

Visual Overview

Frequently Asked Questions

QHow long is the product delivery lead time?
Generally, it takes 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
QDo the products carry quality certifications?
Yes, we maintain a strict quality control system. Our EV charging products are fully compliant with CE and TUV certifications to ensure the highest safety standards.
QWhat is the warranty period for the charging terminals?
The warranty for our products is 12 months upon receipt of shipment under normal operating circumstances.
QCan these chargers work with all electric vehicles?
Yes, our EV chargers are compatible with all electric vehicle models. Note that Tesla vehicles require a J1772 adapter to work with our systems.
QIs an internet connection or an APP required for operation?
It depends on the model. We offer standalone types that use RFID cards or plug-and-play modes. Other models are Wi-Fi connected and support Apps and OCPP 1.6j applications.
QDo you provide customized OEM/ODM services?
Yes, we have been involved in OEM and ODM projects since 2012, allowing us to provide professional customized services based on specific client requirements.
