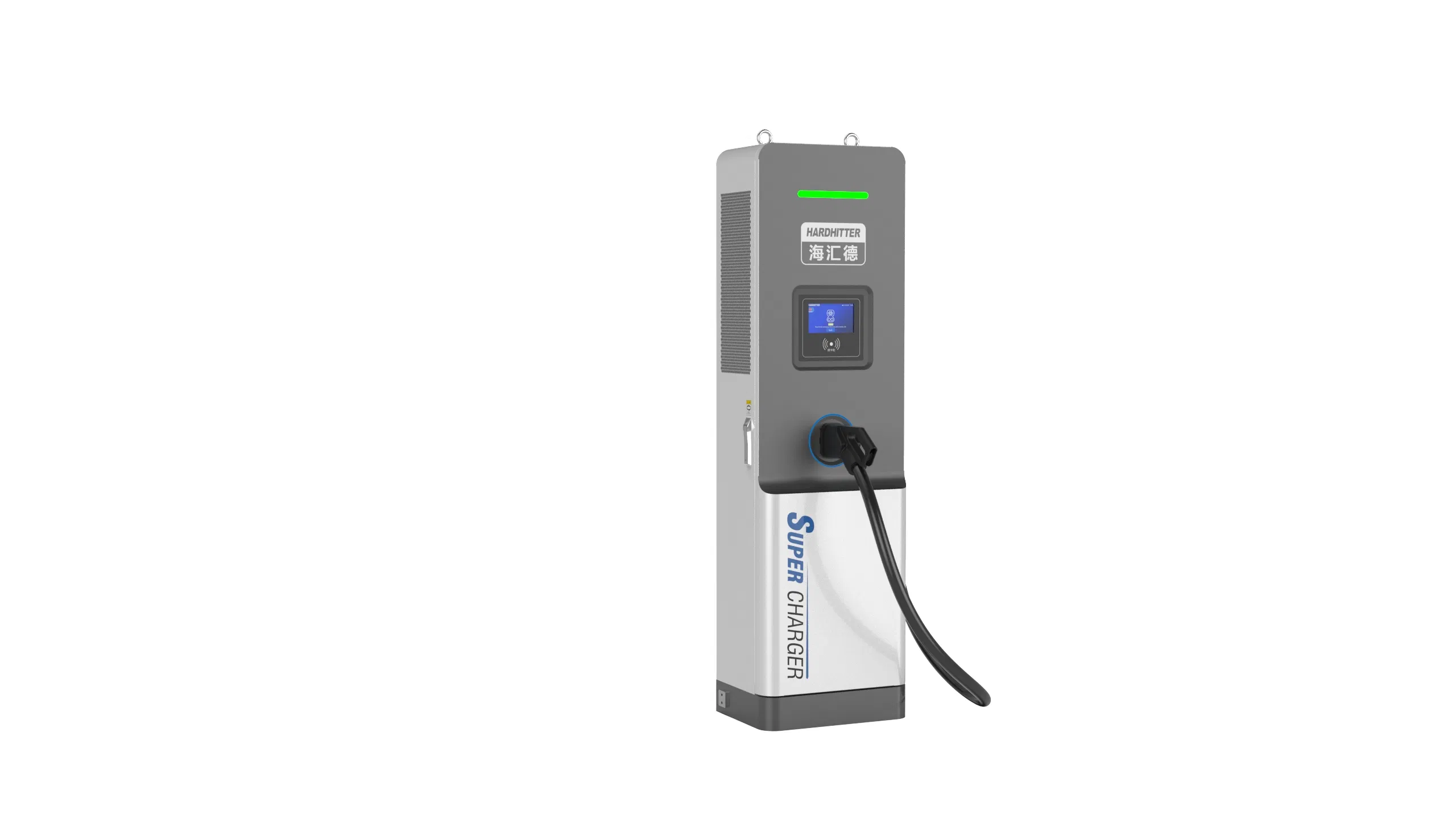

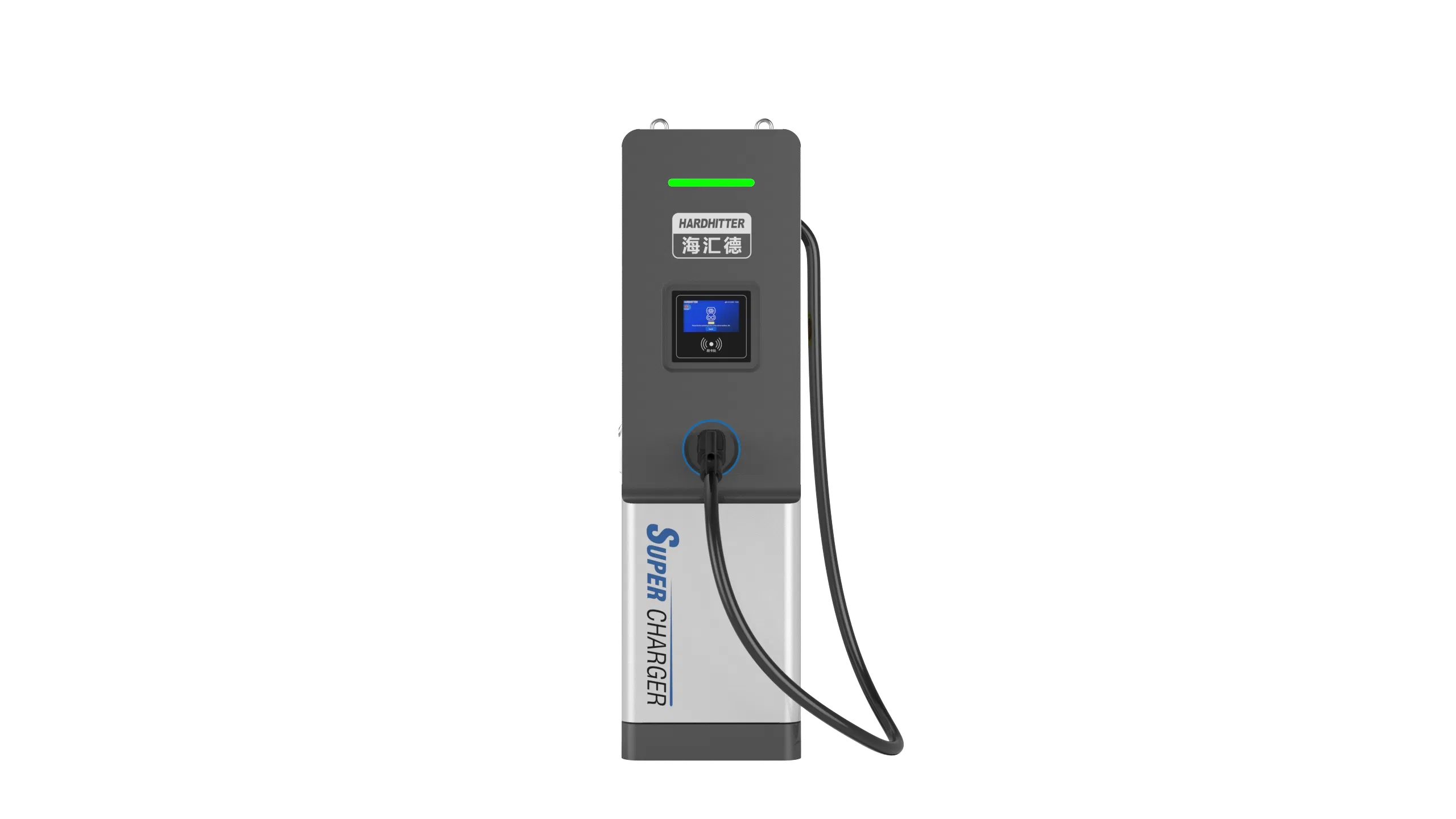

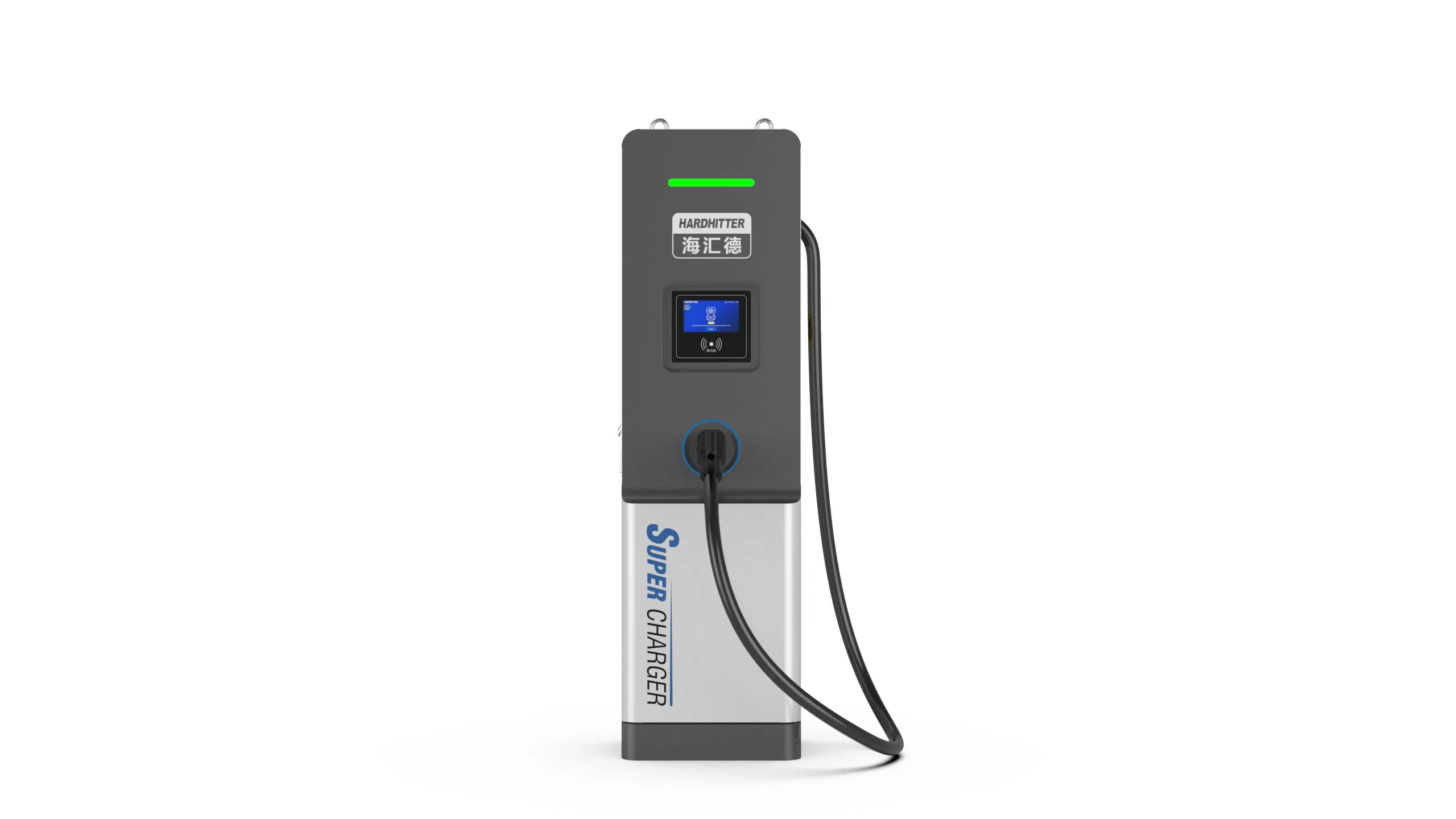

Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging
Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging
Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging
Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging
Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging
1 / 5
Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging
Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging
Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging
Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging
Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging

Intelligent Power Scheduling Charging System: DC Super Charging Terminal for Fast and Efficient EV Charging

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.
HQC21-HMI-111-E
Interfaces
One Pile with One Charge
Installation
Floor Type
Charge Method
Quick Charge
Output Voltage
200~1000V
Output Current
600A(GB/T), 500A(CCS2)
Protection
IP55
Weight
≈140kg
⚙

Product Parameters

Output Voltage200~1000V
Output Current600A(GB/T), 500A(CCS2)

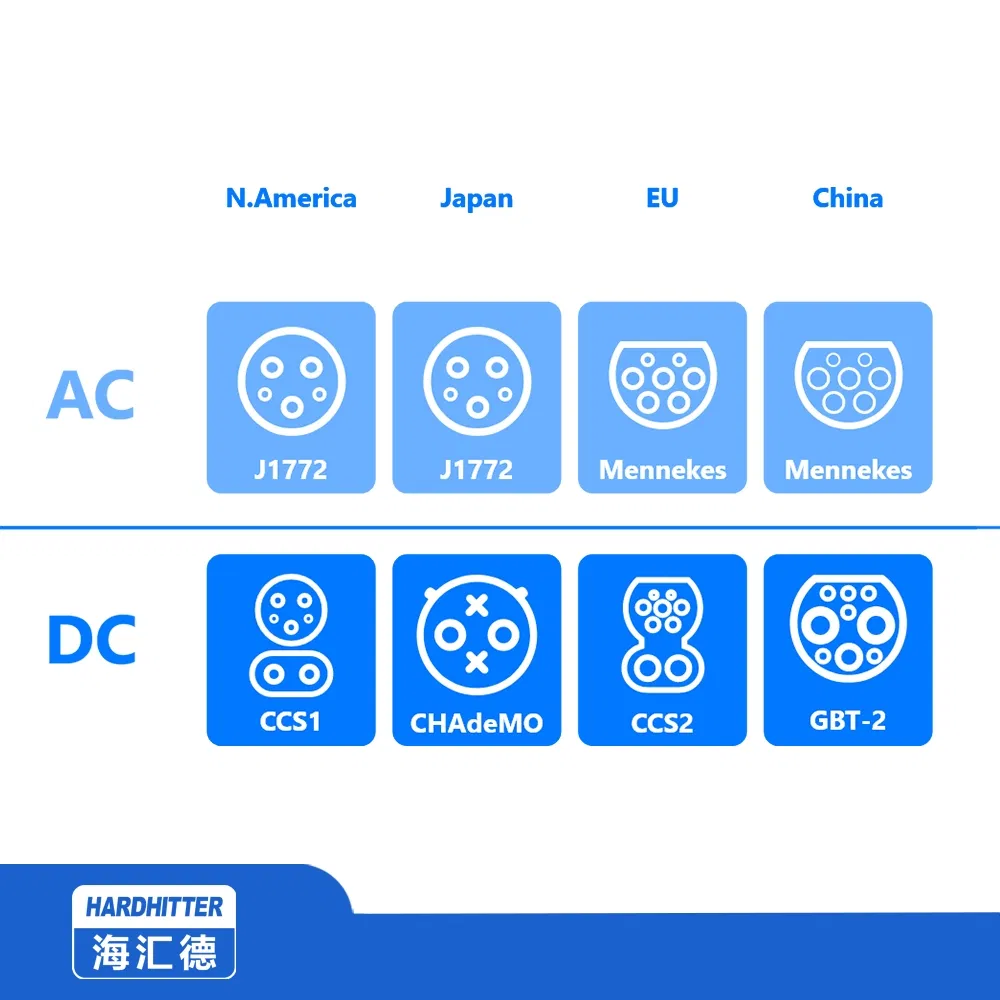

Charging InterfaceGB/T, CCS2
User Interface7 Inch Touch Screen, LED
Start ModeSwipe Card, Scan Code, Plug and Charge, Platform remote start, button Start
Protection LevelIP55
Operation Temp-40°C~+60°C
Altitude≤2000m
Dimensions500*350*1900mm(W*D*H)
Gun Thread LengthCar: 4.5m / Bus: 6m
CommunicationCAN
✔

Product Features

✦
High Power: Single gun rated current 600A, peak current 800A, maximum charging power up to 600kW.
✦
High Protection: Electrical components and heat dissipation system are designed separately, with a protection level of up to IP55.
✦
Low Noise: Equipped with a high-efficiency liquid cooling heat dissipation system; noise is less than 50dB under standard conditions.
✦
High Safety: Intelligent temperature control algorithm accurately monitors the charging gun to prevent abnormal temperature rises.
✦
Convenient Upgrade: Conventional terminals can be easily upgraded to super charging terminals, doubling the charging current.
✦
Ultra-Fast Speed: Maximum output of 600kW allows for over 300 kilometers of travel after just 5 minutes of charging.
⚓

Product Display

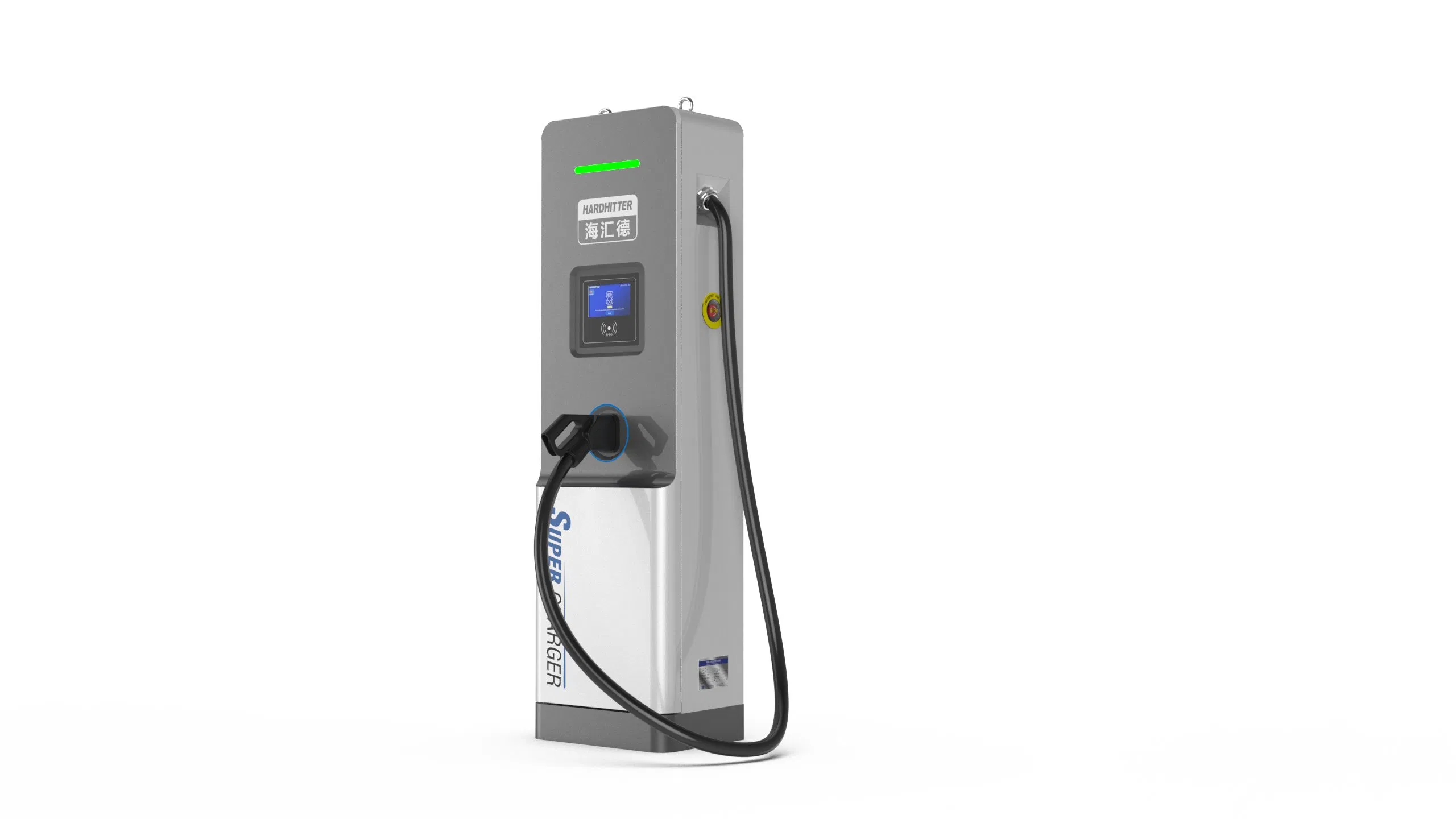

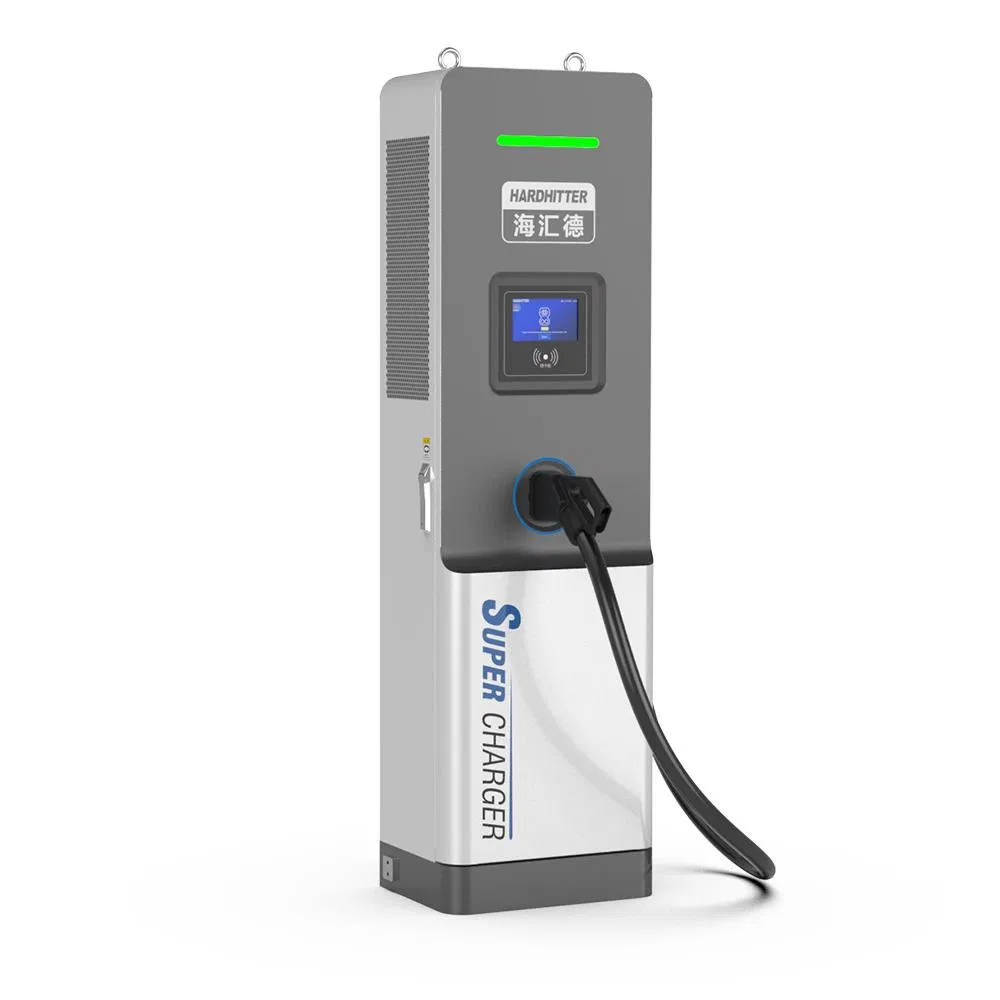

DC Super Charging Terminal 1

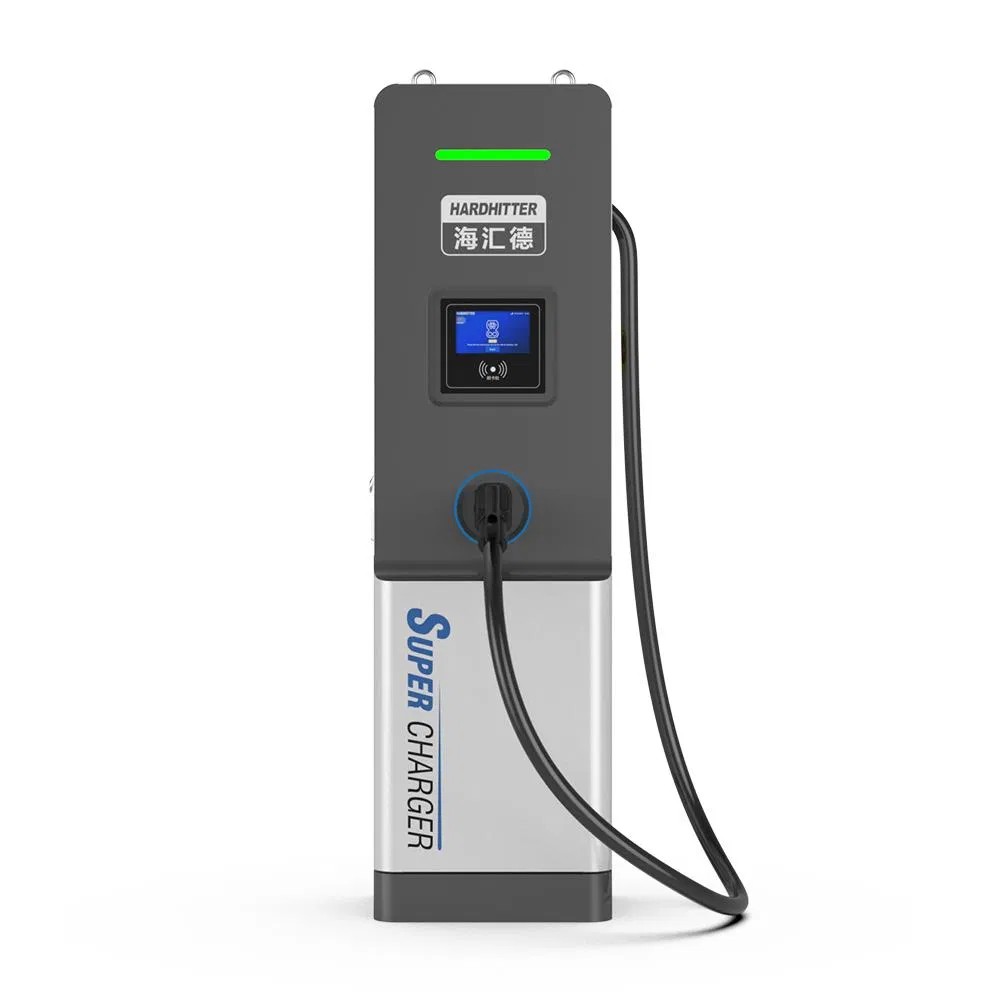

DC Super Charging Terminal 2

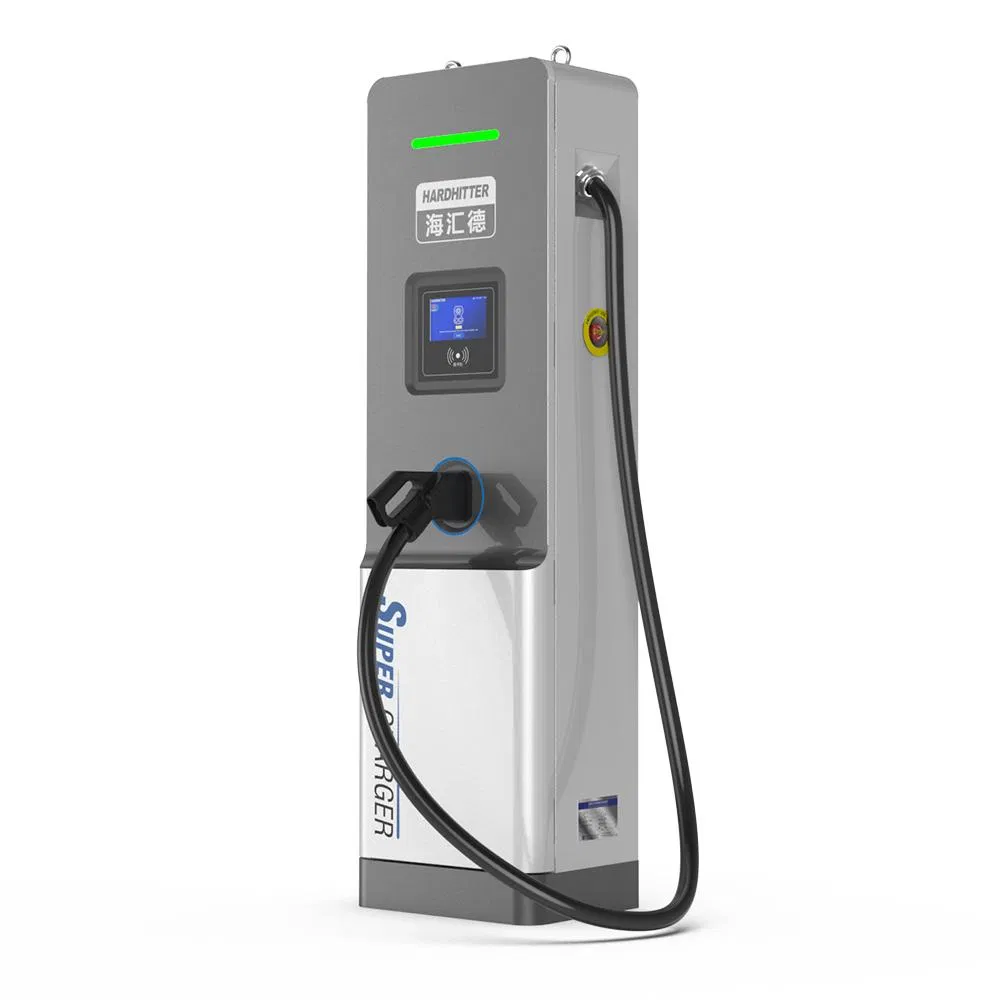

DC Super Charging Terminal 3

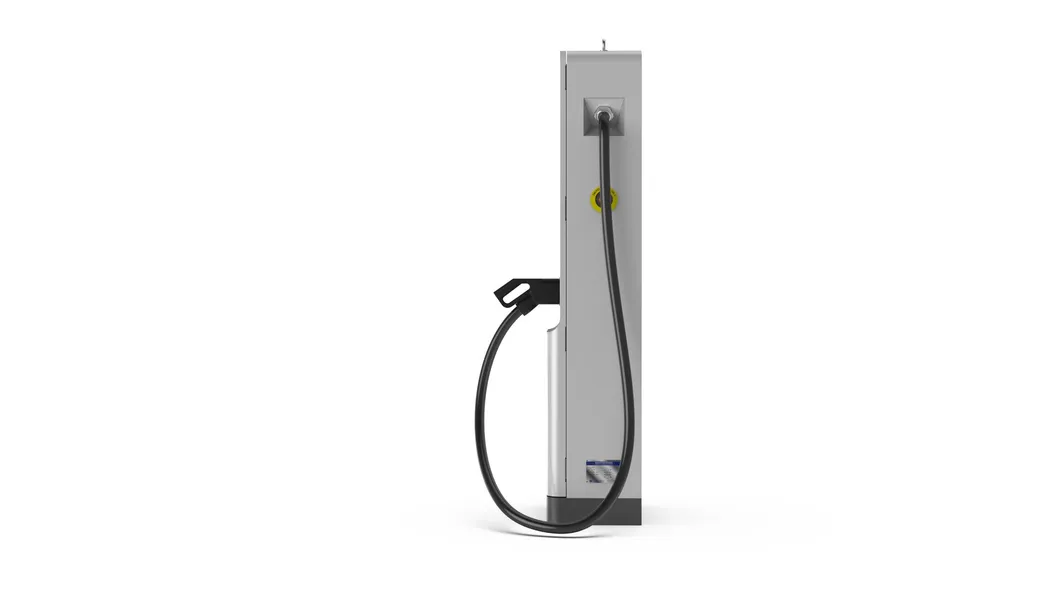

Charging System Detail 1

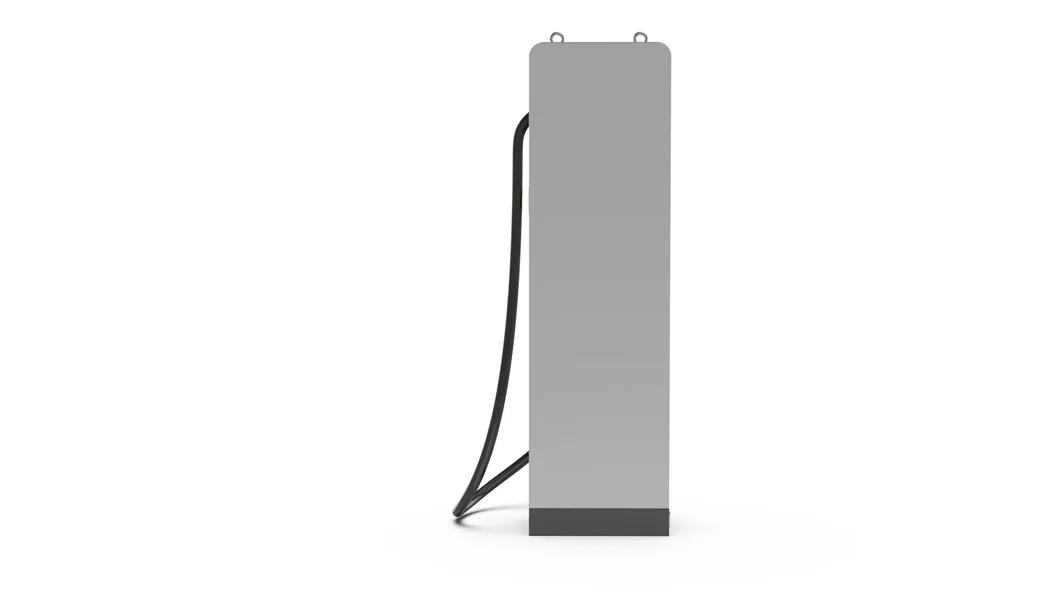

Charging System Detail 2

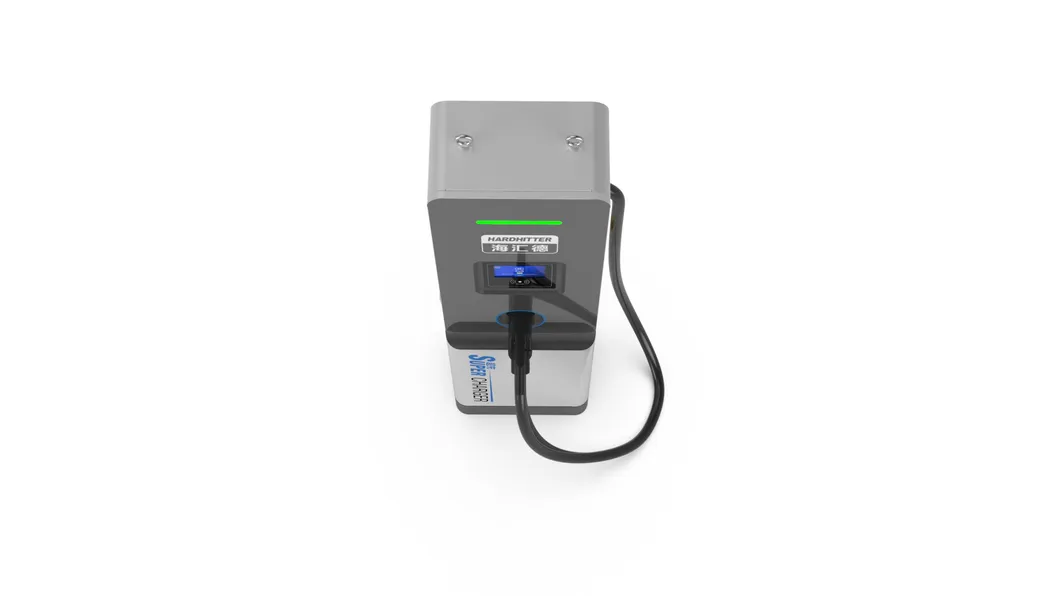

Charging System Detail 3
🏭

Manufacturing & Facilities

Factory Overview
Production Line
Testing Area
Equipment 1
Equipment 2
Storage
Shipping
Office Facility
Certifications
?

Frequently Asked Questions

Q: What is the standard lead time for orders?
A: Generally, it takes 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q: Do your products have quality certification?
A: Yes, we have a strict quality control system. Our EV charging products are passed with CE and TUV certifications to ensure the best quality.
Q: How long is the warranty period?
A: The warranty for our products is 12 months upon the receipt of your shipment under normal operating circumstances.
Q: Can you provide customized OEM/ODM services?
A: Yes, we have been involved with OEM and ODM projects since 2012, allowing us to provide professional customized services for our clients.
Q: Can this EV charger charge all electric vehicles on the road?
A: Yes, all models of our EV Chargers work with all Electric Vehicles. Note that Tesla vehicles require a J1772 to Tesla adapter to work with our systems.
Q: What are your terms of payment?
A: Our standard term is T/T 50% as a deposit and 50% before delivery. We provide photos of the products and packages before final payment.
